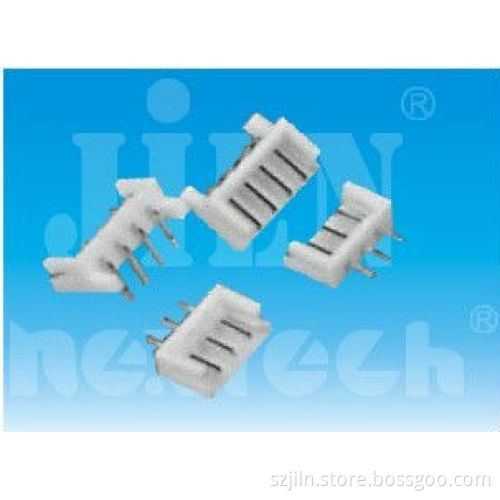

right angle wafer connector

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1.Rich experience in manufacturing

2.ROHS SGS

3.100% tested before delivery

4.Free sample

5.Various types for choice

JL2504 SERIES SPECIFICATIONS:

Wafer ( Straight )
Part No.	WF2504-WSXXW01
Part Name	WF2504 Wafer 180°
Positions	2~15 Circuits
Insulator	Nylon-66 UL94V-0
Contact	Brass
Plated	Tin-plated 50u’’ Min.
Color	White
SPECIFICATIONS
Current Rating	3AMP
Temperature Range	-40°C to +105°C
Contact Resistance	20mΩ Max.
Insulation Resistance	1000MΩ Min.
Withstanding Voltage	AC 1000V
Wafer ( Right Angle )
Part No.	WF2504-WRXXW01
Part Name	WF2504 Wafer 90°
Positions	2~15 Circuits
Insulator	Nylon-66 UL94V-0
Contact	Brass
Plated	Tin-plated 50u’’ Min.
Color	White
SPECIFICATIONS
Current Rating	3AMP
Temperature Range	-40°C to +105°C
Contact Resistance	20mΩ Max.
Insulation Resistance	1000MΩ Min.
Withstanding Voltage	AC 1000V

Engineering drawing:

Our Advantages: 1.All kinds of our products have passed ROHS. 2.Our factory has passed the ISO9001:2000 certification and ISO1400 Certification. 3.We mainly produce the connectors which are used on the Internet,storage,digital computer and other related products. 4.We are glad to make samples according to your drawings and specifications. 5.Available for ODM/OEM order. 6.Please contact us so we can offer you the best quality,competitive price and timely delivery.
