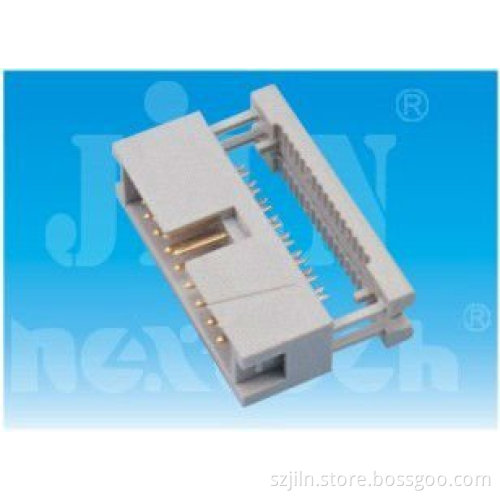

2.54mm Box Header 4 pin connector for cable type IDC type

Specifications 1.ISO9001:2008/ISO14001:2004

2Specification is customized

3Experienced manufacturer

4ROHS,SGS,100%test

5Competitive price

2.54mm Box Header,IDC type 1.Specification:
Current      rating     :3Amp
Operation    temperature:-40 to 105°c
Contact      resistance :20mΩ max
Insulation   resistance :1000mΩ min
Withstanding voltage    :AC1000V
Insulator    material   :Polyster(UL94V-0)/Standard:PBT
Contact      material   :Brass
Contact       plating    :AU or Sn over 50 u'' Ni  2.Engineering draw         3.Box Header Product index: 1. Pitch  Series: 1.27/2.00/2.54mm 2.Tail & Mounting Type:   Straight DIP Type 3.DIP Spacing:  Single/Doublel row 4. Number of contacts: range from 1 up to 100 pins 5.Contact Plated:Gold flash/Gold 3u/ Gold 5u/ Gold 10u/ Gold 15u/ Gold 30u/Tin 6.Material Type: PPS/PBT/LCP/Nylon-66/Nylon-6T/PA46 7.Tires of Body: Single/Double/Triple tier  4.Advantage: 1.All kinds of products passed ROHS. 2.We are glad to make samples according to your drawings and specifications. 3.Available for ODM/OEM order. 4.Please contact us so we can offer you the best quality,competitive price and timely delivery. 5.Our Factory has passed the ISO9001:2000 certification and ISO1400 Certification 6.Rich experience in manufacturing 7Our products are extensively used in electronic and othe industries 8.Well-equipped testing facilities and strong technical force
