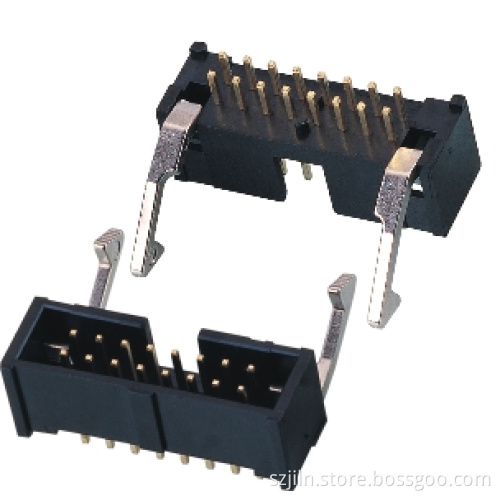

pitch 2.54mm 2.0mm 1.27mm 1.0mm Male Shrouded PCB Header Connector

Specifications 1.ISO9001:2008/ISO14001:2004

2Specification is customized

3Experienced manufacturer

4ROHS,SGS,100%test

5Competitive price

2.54mm Box Header,SMT     1. Pitch  Series: 1.27/2.00/2.54mm   2.Tail & Mounting Type:   Straight DIP Type   3.DIP Spacing:  Single/Doublel row   4. Number of contacts: range from 6 up to 64 pins   5.Contact Plated:Gold flash/Gold 3u/ Gold 5u/ Gold 10u/ Gold 15u/ Gold 30u/Tin   6.Material Type: PPS/PBT/LCP/Nylon-66/Nylon-6T/PA46   7.Tires of Body: Single/Double/Triple tier

box  header connector(Pin header,header connector,PCB header connector)
→Specification←
Pitch:	2.54mm,2.0mm,1.27mm 1.0mm,0.8mm	Withstanding Voltage			500V AC/1 minute
Rated Current:	3Amp	Contact Resistance:			≤0.02Ω Max.
Insulation Resistance:	1000MΩ MIN.	Temperature:			-40~250°C
→Material←
Housing:	PA6T+30%G.F(UL94V-0)		Contact:	Brass
Contact plating:	Gold over nickel Tin over nickel		Pins:	Dual: 6P~64P
→Package←	Inner Packing:Plastic plate Outside Packing: Standard export carton

            1.All kinds of products passed ROHS,SGS, 100% tested before delivery.   2.Factory passed ISO9001:2008 and ISO14001:2004.   3.Available for ODM/OEM order.   4.Some plasitic have passed UL certificated.    5.Well-equipped testing facilities and strong technical force   6. Prompt delivery and competitive price and quality   7. Used in the most of home appliances,computer,PCB,LCD,TV     Warmly welcome here inquiry!
