female solder type 6p usb

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1.Rich experience in manufacturing

2.ROHS SGS

3.100% tested before delivery

4.Free sample

5.Various types for choice

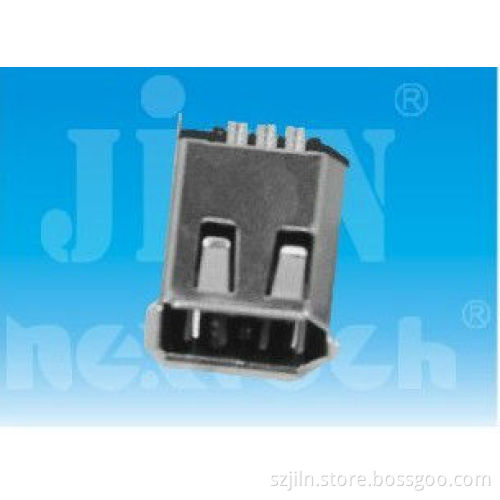

IEEE 1394 Connector, 6P Female Solder Type SPECIFICATIONS:

Current Rating	1AMP
Operation Temperature	-40°C to +105°C
Contact Resistance	20mΩ Max.
Insulation Resistance	1000MΩ Min.
Withstanding Voltage	AC 500V
Insulator Material	Polyester(UL94V-0) Standard: PA66
Contact Material	Phosphor Bronze
Contact Plating	Au or Sn over 50 u'' Ni

Engineering drawing:

Ordering Information:

Contact Plating	Color Type	Function
SN: Tin	B=Black	S=Solder Type
G0: Gold Flash	W=White	D=DIP Type
G2: 5u'' Gold
G3: 10u'' Gold
G4: 15u'' Gold
S1: 3u'' Gold/Tin
S0: Gold Flash/Tin
Standard:S1

Our Advantages: 1.All kinds of our products have passed ROHS. 2.Our factory has passed the ISO9001:2000 certification and ISO1400 Certification. 3.We mainly produce the connectors which are used on the Internet,storage,digital computer and other related products. 4.We are glad to make samples according to your drawings and specifications. 5.Available for ODM/OEM order. 6.Please contact us so we can offer you the best quality,competitive price and timely delivery.
