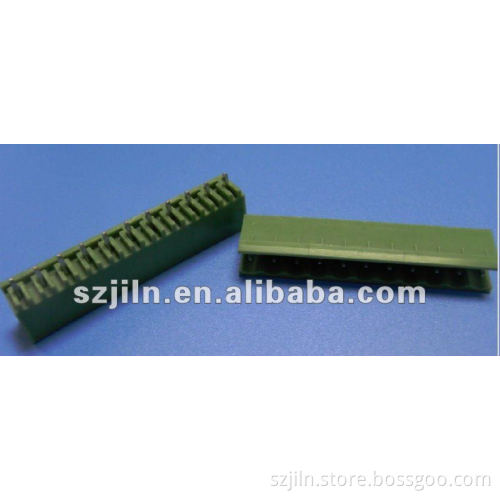

5.08mm 8P waterproof terminal block with ROHS

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1.ISO9001:2008/ISO14001:2004

2.Specification is customized

3.Experienced manufacturer.

4.ROHS,SGS

5.100%test before deliver

5.08mm 8p Terminal block,Green,Straight Single row Specification: Connection data:22~14AWG(2.5mm2) Rating:250V/10A Torque:0.4Nm(3.5Lb.in) Dielectric strength:AC2000V/1 Minute Body:PA66(UL94 V-0) Terminal :Bronze,Ni plating Pin:Brass,Tin plating Screw:M2.5,Steel/Zn plating Temp. range:-40°C~+105°C Soldering Temp:250°C,5s Color:Green
Engineering Drawing:

Advantagement: 1.All kinds of products passed ROHS 2.We are glad to make samples according to your drawings and specifications. 3.Used in the most of home applicances,computer,PCB,LCD,TV 4.Inspections:100% tested before delivery 5.Available for ODM/OEM order 6.Some plastic passed UL. 7.Our factory has passed ISO9001:2008 and ISO14001:2004. Our products:
