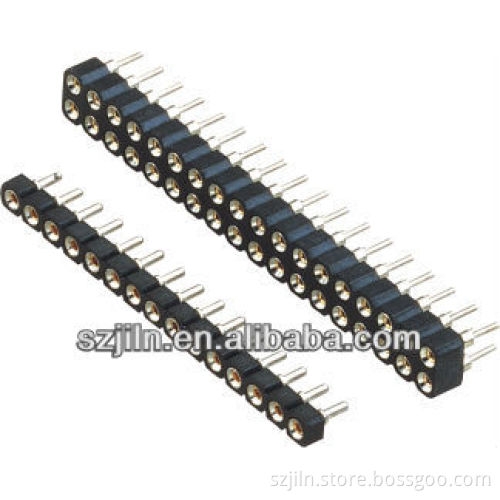

straight 40P with 7.0mm height insulator 2.54pitch sip socket

Specifications 1.27mm SIP Socket Connecor

1 Sleeve/Contact: Brass

2 Mating pin: 0.7mm

3 Clips: Beryllium copper

 2.54*7.0mm round machine pin  connector with straight 40P     1 Number of contacts:   Single row = 01 to 40       Double row=02 to 80   2 Insulator height:   H=4.1mm   3 Sleeve Pin Plated   0=Tin 200μ''     1=Gold flash    2=Gold 3μ''      3=Gold 5μ''    4=Gold 10μ''
5=Gold 15μ''     6=Gold30μ'   4 Pin length : 10mm

PCB Connectors
Flammability	UL94v-0
No of contacts	Single row: 01~40pin  Double row: 02~80Pin
Insulator material	PPS
Terminal material	Phosphor copper
Dielectric resisitance	min 1000V RMS
Working temperature	-40~105°C
Mechincal life	min500cycles
Production lead time	5-7days
