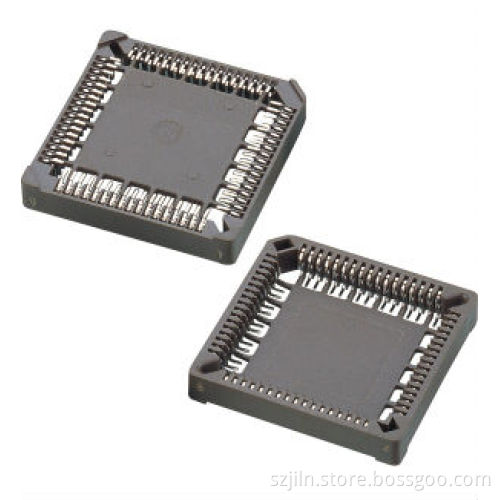

PLCC Socket with DIP Type and SMT 44pin 68pin 84pin

Specifications PLCC Socket Connector

1 DIP / SMT Type

2 Number of contacts : 20,28, 32 ,44 ,52 , 68,84Pin

3 ROHS Compliant/ ISO 14000

2.54mm PLCC,Socket,SMT    Current      rating     :3AMP
Operation    temperature:-40 to 105°c
Contact      resistance :20mΩ max
Insulation   resistance :1000mΩ min
Withstanding voltage    :AC1000V
Insulator    material   :Polyster (UL94V-0)/Standard:PPS
Contact      material   :Phosphor bronze
Contact       plating    :AU or Sn  over 50 u'' Ni

PLCC,Socket,SMT
Pitch	2.54mm
No of contacts	44pin 68pin 84pin  32 pin
Insulator material	PPS
Terminal material	Phosphor copper
Current rating	1~3Amp
Working temperature	-40~105°C
Sample Lead time	Free, 2~3days
Production lead time	5-7days

        Black/Brown/Coffee color are available.
