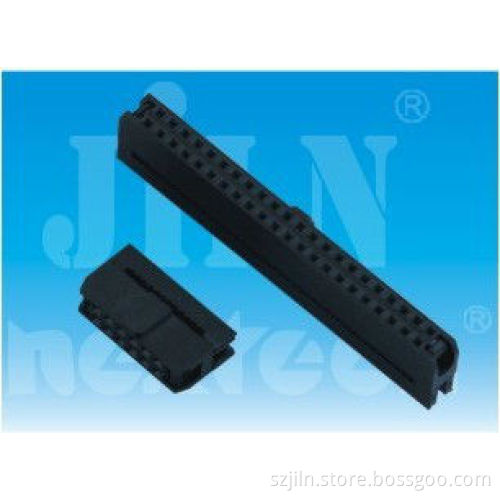

2.00mm idc socket connector

Specifications 1.Rich experience in manufacturing

2.ROHS SGS

3.100% tested before delivery

4.Free sample

5.Various types for choice

2.00mm IDC Socket      SPECIFICATIONS:

Current Rating	1.5AMP
Operation Temperature	-40°C to +105°C
Contact Resistance	20mΩ Max.
Insulation Resistance	1000MΩ Min.
Withstanding Voltage	AC 500V
Insulator Material	Polyester(UL94V-0) Standard: PBT
Contact Material	Brass
Contact Plating	Au or Sn over 50 u'' Ni

        Engineering drawing:    Ordering Information:

Series No.	No. of Contacts	Connector Type	Connector Type	Option Type
1=One Type	02~80P	S=Straight	P=Phosphor Bronze	W=With Lock
2=Two Type		Y=Y Type	B=Brass	N=Without Lock
3=Three Type		U=U Type

      Our Advantages: 1.All kinds of our products have passed ROHS. 2.Our factory has passed the ISO9001:2000 certification and ISO1400 Certification. 3.We mainly produce the connectors which are used on the Internet,storage,digital computer and other related products. 4.We are glad to make samples according to your drawings and specifications. 5.Available for ODM/OEM order. 6.Please contact us so we can offer you the best quality,competitive price and timely delivery.
