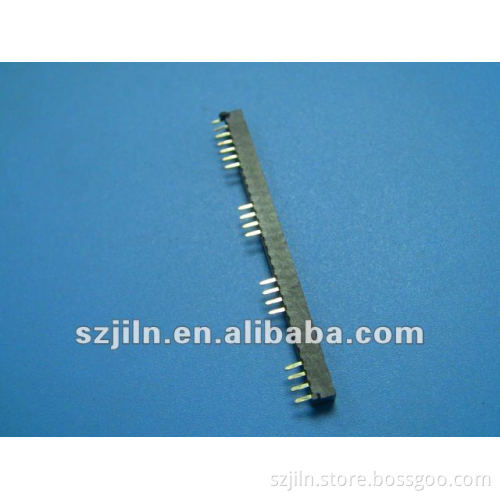

2.0mm Female header with dual row wire connectors types for cable

Specifications 1.ISO9001:2008/ISO14001:2004.

2.Specification is customized

3.Experienced manufacturer

4.ROHS.SGS

5.competitve price

 2.0mm Female Header  H5.45mm ,Dual Row,19P DIP Specification: Current      rating     :1.5Amp
Operation    temperature:-40 to 105°c
Contact      resistance :20mΩ max
Insulation   resistance :1000mΩ min
Withstanding voltage    :AC500V
Insulator    material   :Polyster(UL94V-0)/Standard:LCP
Contact      material   :Phosphor bronze
Conact       plating    :AU over 50 u'' Ni Engineering Draw:   Female  Header Product index: 1. Pitch  Series: 1.00/1.27/2.00/2.54mm 2.Tail & Mounting Type:   Straight DIP Type 3. Insulator Height: 2.1mm/4.3mm/3.4mm/4.0/4.6/4.9/6.35/5.0/8.5/5.7/7.1/6.8/ and so  on. 4.DIP Spacing:  Single/Doublel row 5. Number of contacts: range from 1 up to 100 pins 6.Contact Plated:Gold flash/Gold 3u/ Gold 5u/ Gold 10u/ Gold 15u/ Gold 30u/Tin 7.Material Type: PPS/PBT/LCP/Nylon-66/Nylon-6T/PA46 8.Tires of Body: Single/Double/Triple tier  Advantage: 1.All kinds of products passed ROHS. 2.Some plasitic have passed UL certificated. 3.Available for ODM/OEM order. 4.Please contact us so we can offer you the best quality,competitive price and timely delivery. 5.Our Factory has passed the ISO9001:2000 certification and ISO1400 Certification. 6.Well-equipped testing facilities and strong technical force.
