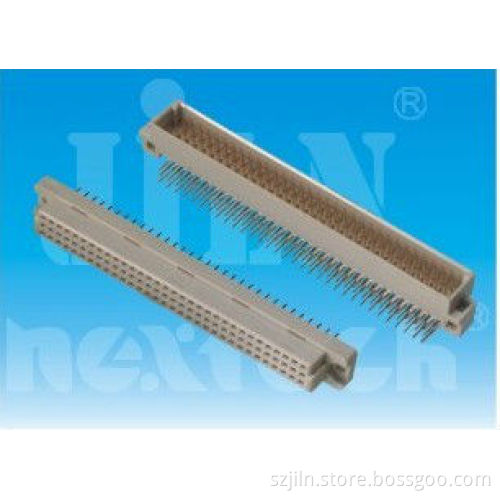

din 41612 three row din connector

Specifications 1.Rich experience in manufacturing

2. Got the certification of ROHS

3.100% tested before delivery

4.Free sample

  DIN 41612 Three Row Specifications Current rating:3AMP Operating temperatures:-40°C to +105°C Contact resistance:20mΩ Max Insulation resistance:1000M Ω Min. Withstanding Voltage:AC 1000V Insulator material :polyester(UL94v-0) Standard:PBT Contact material :brass Contact plating:Au or Sn over 50U''Ni        Engineering drawing:           Ordering information: No. of contacts: 348 / 364 /396 Contact type:M=male/F=female Contact plating:Tin/gold flash/10u" gold/15u" gold/30u" gold Insulator material option:BK-PBT Connector type:Straight / Right angle                                                                                                         Our advantages: 1.Rich experience in manufacturing
2.All kinds of our products got the certification of ROHS
3.Our factury has passed the the ISO9001:2000 certification and ISO1400 Certificatification
4.Our products are extensively used in electronic and other industries
5.Well-equipped testing facilities and strong technical force
6.We are very glad to make samples according to your graph paper and specification
7.We can take promptly shipment and give you the competitive price with high quality.
