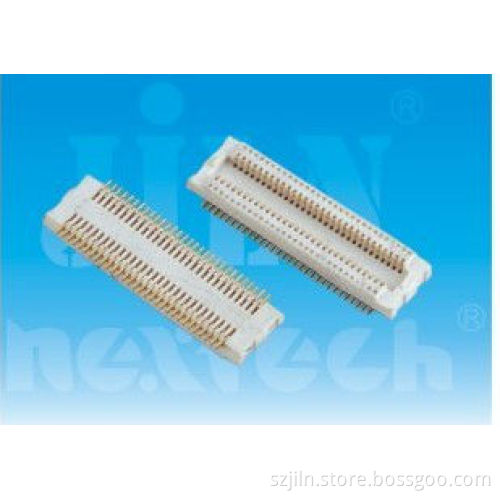

0.5mm pitch pcb board to board connector

Specifications 1.Rich experience in manufacturing

2.ROHS SGS

3.100% tested before delivery

4.Free sample

5.Various types for choice

0.5mm Pitch Board To Board Connector 0.5mm Pitch Header        SPECIFICATIONS:

PERFORMANCE
Electrical Rating	AC/DC 50V 0.5A
Insulation Resistance	500MΩ min.
Withstanding Voltage	200V AC/minute
Operating Temperature	-25°C to +85°C
Material
Contact	Phosphor Bronze Gold Plated
Housing	LCP

        Engineering drawing:    Ordering Information:

4~110P	Contact Plating
	SN: Tin
	G0: Gold Flash
	G2: 5u’’ Gold	H=1.5
	G3: 10u’’ Gold	H=2.0
	G4: 15u’’ Gold
	G5: 30u’’ Gold
	S0: Gold Flash/Tin
	Standard: G0

      Our Advantages: 1.All kinds of our products have passed ROHS. 2.Our factory has passed the ISO9001:2000 certification and ISO1400 Certification. 3.We mainly produce the connectors which are used on the Internet,storage,digital computer and other related products. 4.We are glad to make samples according to your drawings and specifications. 5.Available for ODM/OEM order. 6.Please contact us so we can offer you the best quality,competitive price and timely delivery.
