Double side PWB with 2 Layer PCB Board FR4 1.6MM OSP 144*15

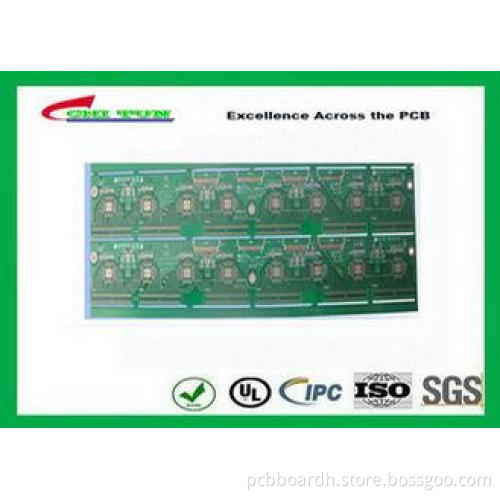

Double side PWB with 2 Layer PCB Board FR4 1.6MM OSP 144*156mm green solder mask

High-tech options

• Circuit boards up to 24 layers
• Flexible boards up to 8 layers
• Rigid-Flex up to 8 layers
• Aluminum core, with plated contacts
• Ultra-fine conductor widths from 50µm
• Film-free laser direct imaging
• Micro vias starting at 75µm
• Blind and buried vias
• Laser vias
• Via plugging / stacking
• Plated half-holes
• Thin laminates starting at 50µm core
• Custom layer buildup
• Sandwich buildup
• Plated slots
• Thick copper
• Circuit board thicknesses up to 7mm
• Depth milling (Z axis)
• Impedance control
• Special colours and coatings
• Removable solder-stop
• Applications:Amplifier, Speaker, Power Supply system,Musical Instruments, Switch Control, Drive Electronics, Modules and Controller Cards, Audio and Video Equipment, Coin Amusement and Video Game, Debit /Smart/Calling Card Machines, Motion Control Systems, Motor Drivers and Induction Heating Power Supplies,Switchgear, Sensor , Automatic Control Systems, Digital Theater Systems, Vacuum Tube Electronics Displays, Linear Motors and Motion Products, Computer Diagnostic Tools, Lottery Pull-Tab and Scratch-off Ticket Machines, Point-of- Sale (POS) Electronic Security Systems, Automatic Control Systems ect.
