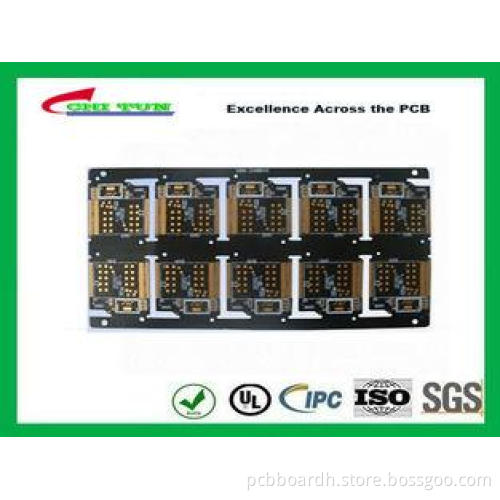

Double Side PCB FR4 TG170 0.2mm immersion gold black solder
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|
|
|
Product Description |
|
Model Number: |
CTE0210002 |
|
Number of Layer: |
2layer |
|
Material: |
FR4 |
|
Finish Thickness: |
0.2mm |
|
Finish copper: |
1OZ |
|
Surface Finish: |
Immersion gold |
|
|
Black solder mask |
|
|
White silkscreen |
|
|
CNC routing |
|
Place of Origin: |
China |
|
Brand Name: |
CHITUN |
|
Certification: |
UL,ROHS,ISO |
|
Standard: |
IPC or base on customers' requestion |
ChiTun Leading the Printed Circuit Board Industry
With over 15years of experience, Chi Tun Electronics LTD is rapidly becoming the logical choice for PCB manufacturers in China. We're proud to manufacture high-quality products. We can handle production orders on 1 layers all the up to 24 layers. and we have quick turn , Small volume and large volume service type without MOQ.
Applications(Target Market):
Cooling and Washing machine, Switching Power Amplifiers, Home Computer, Home Theater/Stereo Surround Sound System, Cable Television Converter Box, Hand Held Video Games, Digital and analog Switching, Remote control electronic toys, Disk Drive duplication systems, LOJACK auto recovery system, Electronic Television Audience Measurement Systems/Electronic Audience Measurement Systems,Headphone Systems ect.
Technology Capability
|
Feature |
2015 |
2016 |
2017 |
|
|
Base Material |
CEM1,CEM3, Aluminum base material |
CEM1,CEM3, Aluminum base material |
CEM1,CEM3, Aluminum base material |
|
|
Max. Layer Count |
24 |
30 |
32 |
|
|
Max. PCB Size (max.) |
558mm X 660mm |
558mm X 660mm |
558mm X 660mm |
|
|
Base copper |
1/3 oz - - 5 oz |
1/3 - - 5 oz |
1/3 - - 5 oz |
|
|
Copper thickness (outer) |
6 oz |
6 oz |
6 oz |
|
|
Max. Board Thickness mm (mil) |
3.4 (134) |
3.4 (134) |
3.4 (134) |
|
|
Min. Board Thickness mm (mil) |
0.1 (4) |
0.1 (4) |
0.1 (4) |
|
|
Min. Line Width / Spacing |
Inner um (mil) |
75/100 (3 4) |
75/75 (3/3) |
75/75 (3/3) |
|
Outer um (mil) |
100/100 (4/4) |
75/75 (3/3) |
75/75 (3/3) |
|
|
Min. Mechanical Drill Size (mm) |
0.2 |
0.2 |
0.2 |
|
|
Min. HWTC um (mil) |
175 (7) |
175 (7) |
175 (7) |
|
|
Min. Soldermask Opening um (mil) |
50 (2) |
50 (2) |
50 (2) |
|
|
Finest SMT Pitch mm (mil) |
0.40 (16) |
0.45 (18) |
0.45 (18) |
|
|
BGA Device Pitch (Base Copper 1oz) (mil) |
0.25-0.3 (10-12) |
0.25-0.3 (10-12) |
0.25-0.3 (10-12) |
|
|
Type of Surface Finish |
HASL, lead free HASL, ENIG, Flash gold, Thick gold, Selective gold plating, OSP, Selective OSP /HASL, Immersion Tin, Immersion Silver |
HASL, lead free HASL, ENIG, Flash gold, Thick gold, Selective gold plating, OSP, Selective OSP /HASL, Immersion Tin, Immersion Silver |
HASL, lead free HASL, ENIG, Flash gold, Thick gold, Selective gold plating, OSP, Selective OSP /HASL, Immersion Tin, Immersion Silver |
|
|
Impedance Control |
+/- 10% |
+/- 8% |
+/- 8% |
|
|
Warpage |
0.7% |
0.5% |
0.5% |
|
Special Technology: Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed circuit board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards,Flex Boards, Rigid Flex PCB printed circuit board , Edge half plated thru hole Circuit boards, Selective Plating Hard Gold, Special Thin or Special Thick PCB board, PCB with Resin Plugged Hole
Advantage:
- No MOQ, low cost for small quantity prototype. We panelize prototype circuit boards on a big panel which will share set-up cost with other customers, which could save a lot PCB tooling cost for small quantity PCB prototype.
- PCB manufacturing on spec. We have professional engineering in the each production process from evaluating cost, checking and assessing Gerber requirement, making MI to production and final inspection to guarantee circuit board quality.
- Meeting your printed circuit board needs from PCB prototyping to mid-volume production
- ISO/TS certified PCB manufacturing factory.
- Deliver on time. We keep higher than 95% on-time-delivery rate
- Combined service to arrange your PCB to you by DDU TO DOOR shipment with competitive shipping cost. You don’t need to arrange anything after confirm the order just wait for your PCB deliver to your hand.
- Offer free DRC for DFM to our customer.
- Decades experience in supporting manufacturing PCB requirement from a wide range of industries
Trade Terms:
|
Minimum Order Quantity: |
1pcs |
|
Price: |
negotiation |
|
Packaging Details: |
box |
|
Delivery Time: |
quick turn and normal type |
|
Payment Terms: |
TT, LC, and others base on negotiation |
|
Supply Ability: |
1, 000, 000PCS/week |
