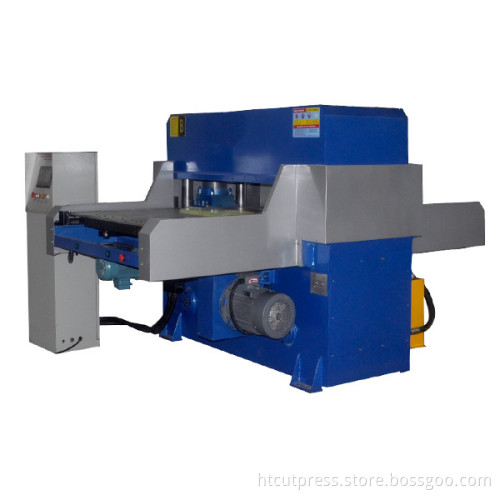

Double-Side Hydraulic Cutting Machine/Cutting Press/Die-cutting Machine

Be widely used in packaging,EPE foam,automotive interior etc.

Features:
By computer control,electrical box,PLC control,more simple,fast and precision.
Double-cylinders,four-column,self-balancing connecting rod which can maintain equal pressure of each cutting position.
Series G machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting.
When the upper board pressure down and contact to the blade automatically,it can cut slowly,so that there is no size error between the top and the bottom materials.
The unique setting construction,combine with the cutting knife and cutting height which can make stoke simple and accurate.
Central automatic lubrication systems can ensure precision and durability of the machine.

Model Cutting force Dimension Cutting Area Motor Stroke Net Weight
HTG60T/63″ 60T 3000×2300×1570mm 810×1600mm 5.5kw 50-240mm 4500kg
HTG80T/63″ 80T 3000×2300×1570mm 810×1600mm 7.5kw 50-240mm 5500kg
HTG100T/63″ 100T 3000×2300×1570mm 810×1600mm 7.5kw 50-240mm 6200kg
