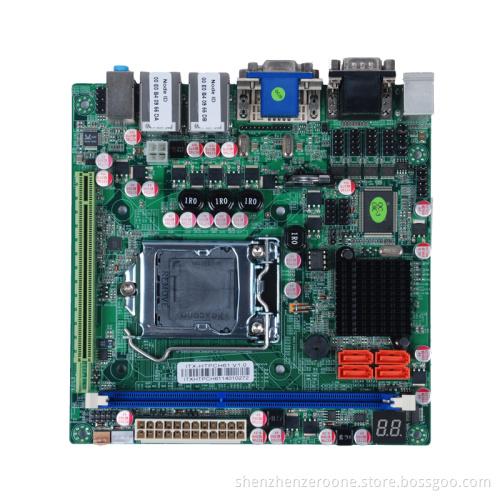

17x17CM Mini-ITX Embedded Motherboard/Intel LGA1155 processor/Intel H61 chipset

CPU: LGA 1155 CPU optional

Chipset: Intel® H61

GPU: Intel CPU built-in graphic chip

Output display: DVI.VGA.VGA Pin

Memory: 1*DDR3 1333\1066MHz Memory,max support up to 8GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RTL8111E Gigabit LAN

Storage: 4*SATAⅡ

PCI-E: 1*PCIEX16

USB: 8*USB2.0 (4*USB2.0 need to extend)

COM: 6*COM(4*COM need to extend)

Rear I/O interface:

4*USB2.0 port

1*VGA port

1*AUDIO port

1*PS/2 port

2*LAN port

2*COM port

1*DVI port

Front I/O interface:

2*USB2.0 Pin(support 4*USB2.0 port)

5*COM Pin(support 1*485)

1*4Pin ATX

1*12Pin VGA Pin

2*COM-FUN

1*F-AUDIO Pin

1*F-PANEL Pin

1*CLR-COMS

1*J-485

1*12PIN VGA Pin

1*24Pin ATX-PWR Pin

1*SYS-FAN

1*CPU-FAN

1*DEBUG ligjt

BIOSL: AMI BIOS

Power supply: Built-in 24+4 Pin

Cooling system: Self-equipped CPU radiator and fan

Working condition: 0~50℃;0% ~ 95% relative humidity, no condensation

Size: 170X170MM
