Product Description

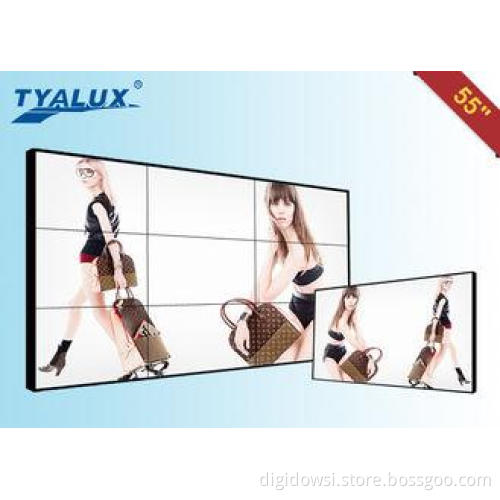

HD 1080P LED Advertising Narrow Bezel Video Wall 3*4 5.3mm with Free Software

Description:

1: The green environmental protection design: Meet the ROHS standards, caring for the environment

2: Integrated more video signal source line: HDMI, DVI, CVBS, USB, BNC

3: 55" Samsung/LG ultra narrow screen with only 5.3mm bezel.

4: Large viewing angle 178/178, and 6ms response time

Specifications:

Specifications
Model No.		TYL-SDID5509-B
Screen size		Samsung 55 inch lcd screen
Aspect Ratio		16:9
Resolution		1920*1080
Bezel width		5.3mm
Brightness (nits)		500cd/m2
Contrast		4500:1
Visual angle (H/V)		178°
Response time		<=8ms
Life(hrs)		>60,000(hrs)
Input and output
BNC out		1
BNC in		2
VGA in		1
HDMI in		1
DVI in		1
YPBPR in		1
Power
Power supply		AC100V~240V
Maximum power consumption		300W
Standby power consumption		<=3W
Temperature
Working temperature		0°C~50°C
Working humidity		20%-80%
Appearance
Panel dimension( W x H x D) mm		1215.3(L)686(H)155(D)mm
Acessory
Cable		Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	TYL-DP5509
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	50W
Weight	About 3.5KG

Applications:

supermarket,Public,Hotel,Restaurants,Healthcare,Education,Government,Retail,Exhibition Halls,Bookstores,travel agencies,exclusive agencies,chain shops,fashion shop,large-scale sales,golf courses,bus & train station,Security Monitoring Center, Surveillance

Why choose Weiguan Views:

1: We could customize and do OEM/ODM service for our customers, according to customers’ design and requirements

2: We promise 100% full new brand A+ LCD panel, generally speaking adopt LG, Samsung,it owns long use life and good visual effect.

3: Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.

4: Professional service and honesty based. Reply your inquiry in 8 working hours.
