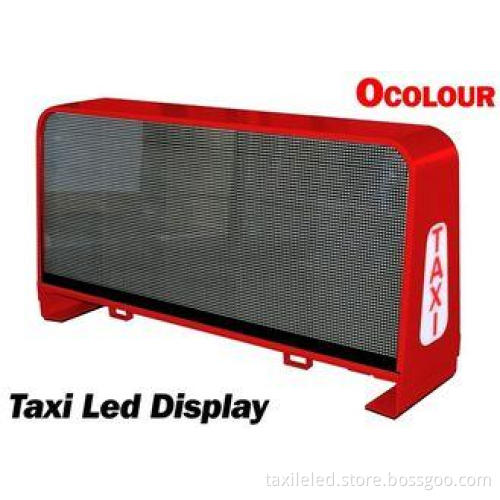

5 mm Full Color Advertising Waterproof Taxi Led Display For Taxi Roof
Quick Viewing:
1. Aluminum cabinet with curved angle, similar with vehicles’ streamlining design style;
2. IP65 protection degree, waterproof and weatherproof, suitable for pretty cold Russia or burning hot Africa;
3. Horizontal and vertical 120-degree plus larger viewing angle than taxi LCD screens;
4. Supporting text, graphics, video or flash, more choice than traditional taxi top backlit advertising, which needs printing and only showing one ads one time;
5. Color temperature 3200-9300 k adjustable;
6. Less than 50LB (22kg) each set, ultra-thin and lightweight design;
Detailed Description:
Our Taxi Led Display is suitable for outdoor usage, adopting aluminum sheet metal, and endowed with excellent rustproof effect by virtue of electrostatic spraying process.
The installation is very simple trough the use of two bars connectable like normal baggage bars. Power main cable connects directly to the car’s accumulator and a cigarette lighter plug inside the driver’s seat is used for controlling taxi led sign power on/off. You can also set the backlight on or off with a simple button. A control card and UMTS (Universal Mobile Telecommunications System) router could be integrated. The taxi led screen have a web-based controlling manage platform (works in browser without any installation) is included.
Popular Application:
Taxi top led display media, taxi roof led display advertising
Specifications:
|
Item |
Technical Parameters |
|
|
Screen model |
OC-MT-P5SMD2525 |
|
|
Red chip (wavelength range: 620-630nm, 5nm) |
Brightness range:500-900mcd |
|
|
Green chip (wavelength range:460-470nm, 4nm) |
Brightness range: 1200-1500mcd |
|
|
Blue chip (Wavelength range: 520-530nm, 4nm) |
Brightness range: 300-450mcd |
|
|
Module |
Led configuration |
SMD 3 IN 1: SMD2525/SMD3528 |
|
Pixel pitch (mm) |
5mm(0.2 inch) |
|
|
Module resolution (W X H) |
W 32 x H 32 dots |
|
|
Module dimension (W x H inch) |
W 6.3 x H 6.3 x D 0.67 inch (W 160 × H 160 x D17 mm) |
|
|
Cabinet |
Module quantity(W × H) |
W 6 × H 2, per side |
|
Cabinet resolution(W × H) |
W 192 × 64 dots, per side |
|
|
Cabinet dimension(W x H inch) |
W 37.80 x H 12.60 inch per side (W 960 x H 320 mm per side) |
|
|
Cabinet surface area(sq.ft) |
3.31 sq.ft / (0.31sq.m) per side |
|
|
Physical pixel density (dots/sq.ft) |
3716dots/sq.ft(40000dots/㎡) |
|
|
Brightness |
≥465CD/sq.ft (5000CD/㎡) |
|
|
Cabinet flatness(inch) |
≤0.08inch (0.2mm) |
|
|
Maintenance |
Back-maintained |
|
|
Cabinet material |
Aluminum |
|
|
Cabinet weight |
≤48.5lb (22kg) |
|
|
Optical parameters |
Single-point brightness correction |
Available |
|
Single-point color correction |
Available |
|
|
Color temperature(K) |
3200—9300 adjustable |
|
|
Horizontal viewing angle |
120° |
|
|
Viewing angle (Vertical) |
120° |
|
|
Brightness Uniformity |
<3% |
|
|
Color uniformity |
≥97% |
|
|
Contrast ratio |
5000:1 |
|
|
Electrical parameters |
Max power consumption |
580W per unit of taxi led screen |
|
Average power consumption |
180-240W per unit of taxi screen |
|
|
Power supply |
DC9-36V |
|
|
Security Features |
GB4943/EN60950 |
|
|
Drive mode |
Constant Current Driver, 1/8 scan |
|
|
Gray scale level |
10 bit |
|
|
Refresh rate(Hz) |
≥960 |
|
|
Processing |
≥14 bit |
|
|
Module comes with power failure |
Save luminance, Color correction, module data |
|
|
Use parameter |
Life time(hrs) |
100,000 hours |
|
Operating temperature / humidity |
-40F–140F (-40-60℃) /5%-95%RH(non-condensing) |
|
|
Storage temperature / humidity |
-40F–140F (-40-60℃) /5%-95%RH(non-condensing) |
|
|
Certification |
CCC/FCC/TUV/CE/ETL |
|
