868Mhz 100mW RF Wireless Telemetry Module For Solar Control
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|

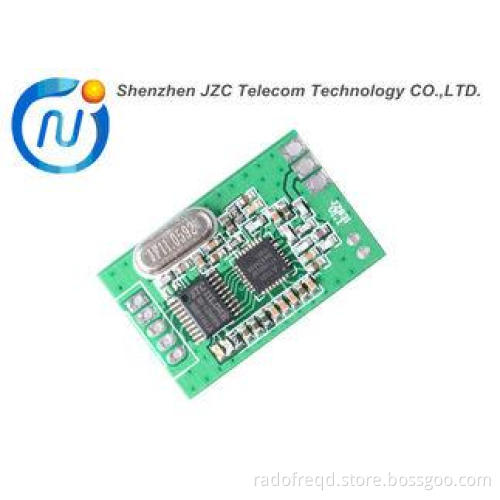

868 Mhz RF Wireless Telemetry Module For Solar Control Light/ AMR Automatic JZX831
Specifications
1.100mW,up to 500m,DC 5V
2.Various frequency upon request
3.RS232/RS485/TTL
4.1200/2400/4800/9600Bps
5.Good sensitivity
Details:
|
Serial number |
Item |
Parameter |
Note |
|
1 |
Modulation mode |
FSK |
|
|
2 |
Work frequency |
433MHZ |
Capable of 315/868/915mhz |
|
3 |
Transmission power |
<100mW |
|
|
4 |
Transmitting current |
<100mA |
|
|
5 |
Receiving current |
<10mA |
|
|
6. |
Sleeping current |
<1uA |
|
|
7 |
Receiving sensitivity |
-110dbm(1200bps) |
|
|
8 |
Channel amount |
8 channel |
User setting |
|
9 |
Working temperature |
-20+65 |
°C |
|
10 |
Antenna impedance: |
50 |
|
|
11 |
Power supply |
TTL: DC+2.8V+3.6V or 3.6V+5.5V, |
RS232/RS485: +5V±0.5V |
|
12 |
Dimension |
44mm×27mm×8mm |
|
|
13 |
Interface |
TTL, RS232, RS485 |
|
|
14 |
Reliable transmit distance |
300-500m |
|
FAQ:
Q1: What is the minimum order quantity for JZC products?
A:Minimum order quantity depends on a particular product ,at the same time. we have more than
100 stock type which can support the different requirement of the customer. so, if you need small
quantity like several pieces for a try, it is also available for us to deliver you.
Q2: How to get our new products information?
A:You can learn through website update, E-mail, our promotion catalogue. Or you can consult
about our salesman by telephone, fax
Q3: How do you make a price offer and how long is its validity?A:Price offer is based on customer's
particular order, agreed payment terms, and actual cost. Usually,the offer is valid for 15 days.
