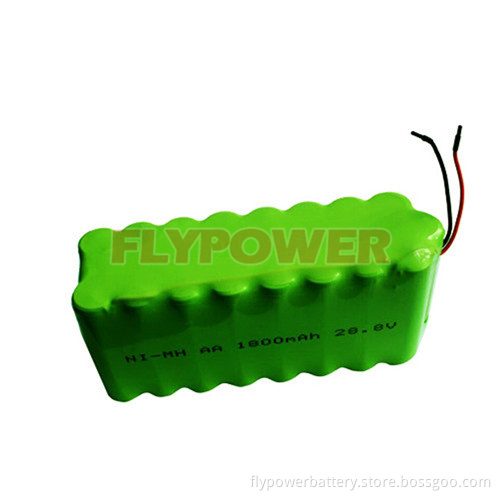

1. Model: Ni-MH battery 28.8V AA1800mAh Rechargeable battery pack(24S of FH-AA1800).
2. UN, RoHS, CE approved Ni-MH Battery pack.
3. Ni-MH Battery pack OEM orders are welcomed.
4. Ni-MH Battery pack is widely used to consumer portable equipments, Information Devices, Miner lamps, Power tools, Remote Control Toys, Medical Devices, vacuum cleaner, cordless phone, etc.
5. Bulk pack, blister card are available.
6. For Ni-MH Standard Industrial series AAA size other capacity are available from 500mAh to 900mAh.
7. Customizes shapes, capacity, and voltage are accepted.
8. Individual cells can be assembled in parallel or series into stacks as required by customers.
9. No memory effect, High voltage, high energy density, long cycle life.
10. Eco-friendly.

Cell:	Ni-MH
Model:	24S of FH-AA1800
Nominal Voltage:	28.8V
Nominal Capacity:	1800mAh
Minimal Capacity:	1700mAh
Charge Current:	Standard charge : 0.1C(180mA)
	Rapid charge : 0.5C(900mA)
Charging Time:	Standard charge : 16.0 hours (Ref.)
	Rapid charge : 2.4 hours (Ref.)
ContinuousDischarge Current:	2.0C (3600mA)
Cut-off Discharge Voltage:	3.0V
Dimensions(T.W.H.):	Max. 45mm *115 mm*52mm
Weight:	Approx. 650g
Operating Temperature:	Charge : 0 ~ 45 ºC
	Discharge: -10 ~ 60 ºC
Storage Temperature:	at -5 ~ 35 ºC Recommend(25±5 ºC)
Control required	1) -ΔV: 0 ~ 5mV 2)  d T / d t: 0.8 ºC/ min 3)  T co: 40 ~ 45 ºC
Note	Storage capacity should be 40%~50% full charge capacity.
