1. Model: Ni-MH battery 12V D9000mAh Rechargeable battery pack(10S of FH-D9000).
2. UN, RoHS, CE approved Ni-MH Battery pack.
3. Ni-MH Battery pack OEM orders are welcomed.
4. Ni-MH Battery pack is widely used to consumer portable equipments, Information Devices, Miner lamps, Power tools, Remote Control Toys, Medical Devices, vacuum cleaner, cordless phone, etc.
5. Bulk pack, blister card are available.
6. For Ni-MH Standard Industrial series D size, other capacity are availabe from 2500mAh to 10000mAh.
7. Customizes shapes, capacity, and voltage are accepted.
8. Individual cells can be assembled in parallel or series into stacks as required by customers.
9. No memory effect, High voltage, high energy density, long cycle life.
10. Eco-friendly.

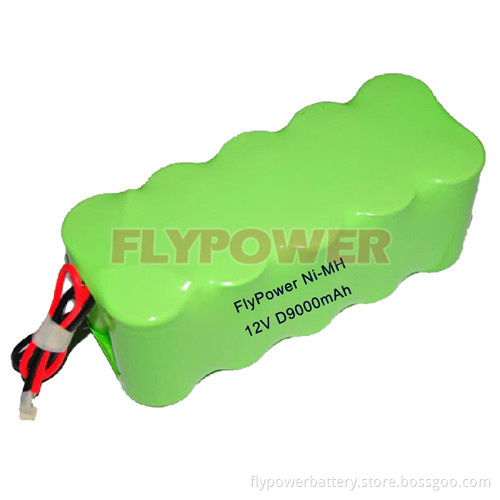

Ni-MH 12V D9000mAh Rechargeable battery pack(10S of FH-D9000)
Cell	Ni-MH
Model	10S of FH-D9000
Nominal Voltage	12V
Nominal Capacity	9000mAh
Minimal Capacity	8800mAh
Standard Charge	900 mA, 16 hrs
Rapid Charge:	4500 mA, 2.2 hrs (control required)
Continuous Discharge	less than 9000 mA
Final Discharge Voltage	1.0 V (less than 1.0C)
Service Life	≥500 cycles (IEC61951-2-2003)
Dimension(W*L*H)	65mm*165mm*65
Weight	Approx. 1700 g
Ambient Temperature:	Standard charge: 0~45 ºC
	Rapid charge:   10~40 ºC
	Discharge:       -20~50 ºC
Store (65+20% RH)	Less than 360 day: -20~30 ºC
	Less than 30 day: -20~40 ºC
Notes: 1."C" behind the model no. refers to normal consumer series  ; 2. Capacity obtained after charge at 0.1C for 16 hrs and discharge at 0.2C to 1.0V at 25 ºC; 3.  Control required: 1) -ΔV: 0 ~ 5mV 2)  d T / d t: 0.8 ºC/ min 3)  T co: 40 ~ 45 ºC
