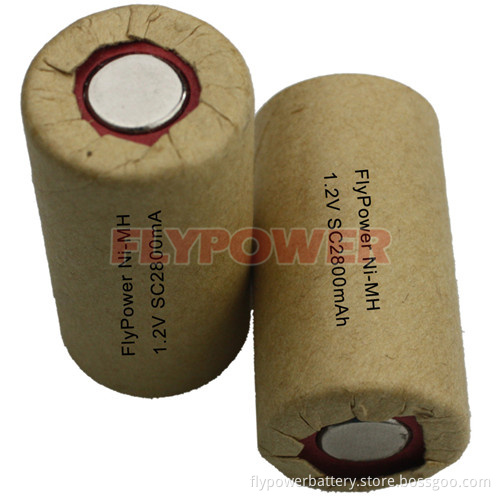

1. Model: Ni-MH battery 1.2V SC2800mAh high rate discharge rate cell Power tool/drill battery (FH-SC2800P).
2. UN, RoHS, CE approved Ni-MH Battery pack.
3. Ni-MH Battery pack OEM orders are welcomed.
4. Ni-MH Battery pack is widely used to consumer portable equipments, Information Devices, Miner lamps, Power tools, Remote Control Toys, Medical Devices, vacuum cleaner, cordless phone, etc.
5. Bulk pack, blister card are available.
6. For Ni-MH High Power series Sc size, other capacity are availabe from 2000mAh to 4800mAh.
7. Customizes shapes, capacity, and voltage are accepted.
8. Individual cells can be assembled in parallel or series into stacks as required by customers.
9. No memory effect, High voltage, high energy density, long cycle life.
10. Eco-friendly.

Cell:	Ni-MH
Model:	FH-SC2800
Nominal Voltage:	1.2V
Nominal Capacity:	2800mAh
Minimal Capacity:	2700mAh
Charge Current:	Standard charge : 0.1C(280mA)
	Rapid charge : 0.5C(1400mA)
Charging Time:	Standard charge : 16.0 hours (Ref.)
	Rapid charge : 2.4 hours (Ref.)
Continuous Discharge Current:	10C (28A), Discharge Average Voltage: over 1.04V per sigle cell
Cut-off Discharge Voltage:	0.8V
Dimensions(D*H):	Approx. 22.5mm *43mm
Weight:	Approx. 55g
Operating Temperature:	Charge : 0 ~ 45 ºC
	Discharge: -10 ~ 60 ºC
Storage Temperature:	at -5 ~ 35 ºC Recommend(25±5 ºC)
Control required	1) -ΔV: 0 ~ 5mV 2)  d T / d t: 0.8 ºC/ min 3)  T co: 40 ~ 45 ºC
Note	Storage capacity should be 40%~50% full charge capacity.
