1. Model: Lithium ion Polymer Battery pack 11.1V 2200mAh (3S1P of FLP-824053).
2. UN, RoHS, CE approved Polymer Li-ion Battery pack.
3. Li-ion Polymer Battery pack OEM orders are welcomed.
4. Li-on Polymer Battery pack is widely used to Notebook, PDA, Information Devices, Bluetooth, Mobile phone, Power tools, Remote Control Toys, Aeromodellings, MP3, etc.
5. Battery packs are available.
6. Bulk pack, blister card are available.
7. Customizes shapes, capacity, and voltage are accepted.
8. Individual cells can be assembled in parallel or series into stacks as required by customers.
9. No memory effect, High voltage, high energy density, long cycle life.
10. Eco-friendly.

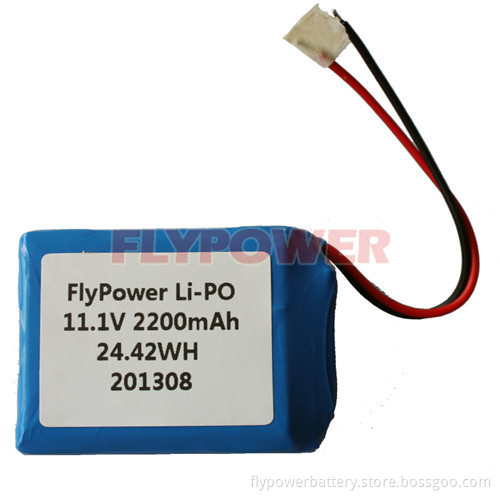

Li-Polymer 11.1V 2200mAh battery pack(3S of FLP-824053 with PCM)
Cell:	Lithium Polymer
Model:	3S of FLP-824053
Nominal Voltage:	11.1V
Nominal Capacity:	2200mAh
Minimal Capacity:	2100mAh
Charging Method:	CC/CV(Constant Current/Constant Voltage)
Charge Current:	Standard charge : 0.2C(440mA)
	Rapid charge : 0.5C(1100mA)
Charging Time:	Standard charge : 16.0 hours (Ref.)
	Rapid charge : 4.5 hours (Ref.)
ContinuousDischarge Current:	1.0C (2.2A)
Cut-off Discharge Voltage:	9V±0.05V
Overcharge Voltage	4.28±0.025V per cell
Over Discharge Cut Off Voltage	2.4±0.05V per cell
Short Circuit Protection	Recover after removing the short circuit load or recharge
Dimensions(T.W.H.):	T*W*H: 24.5mm * 40.5mm*56.5mm
Weight:	Approx. 120g
Operating Temperature:	Charge : 0 ~ 45 ºC
	Discharge: -10 ~ 60 ºC
Storage Temperature:	at -5 ~ 35 ºC Recommend(25±5 ºC)Note:Storage capacity should be 40%~50% full charge capacity
Applications	Medical equipment or other portable device
