3.7V 120mAh Li-ion polymer battery pack

Get Latest Price

Payment Type:: T/T

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	999999999999pcs
Supply Ability:	99999999999pcs/month
Payment Type:	T/T

Product Description

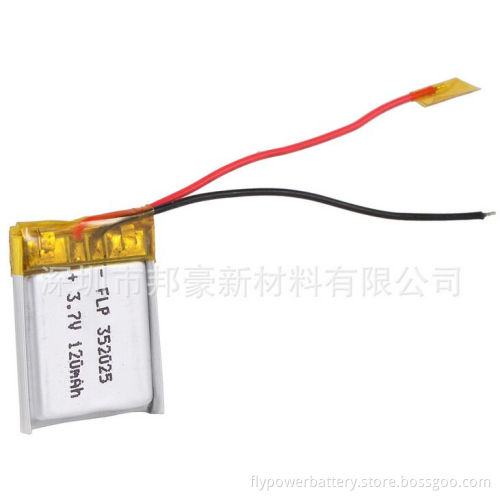

Battery Name: 3.7V 120mAh Li-ion polymer battery pack

Battery Model: 1S1P of FLP-352025

Battery Keywords: 3.7V 120mAh Li-ion polymer battery pack,Lithium ion polymer battery,Li-PO battery,Li-polymer battery,lithium polymer battery,LIPO battery,Polymer lithium ion battery,li-poly battery

Battery Applications: consumer electronic products,bluetooth,recording pen,etc.

Battery Features:

1. UN38.3,RoHS,CE certificated Li-polymer battery pack;

2. It could be customed by the clients' request,Li-ion Polymer Battery pack OEM orders are welcomed;

3. The anode materials is LiCoO2(Advantage: work voltage 4.2V-3.7V,charge/discharge voltage is stable,energy density is higher,cycle life is exceleent),the battery life cycles is over than 500 times and the capacity remains over 80% after 300 cycles;

5. Build in two-way protection IC circuit board, a single cell over charge protection voltage 4.20V±0.05V, over discharge protection voltage 2.7V±0.1V;

6. No memory effect, High voltage, high energy density, long cycle life;
7. Eco-friendly.

Battery Specifications:

3.7V 120mAh Li-ion polymer battery pack(1S1P of FLP-352025)

Cell	3.7V 120mAh FLP-352025
Battery pack method	1S of FLP-352025
Norminal voltage	3.7V
Nominal capacity	120mAh
Charge method	CC/CV
Standard charge	Constant charge current: 0.2C(24mA) Constant charge voltage: 4.2V/Cell
Over charge	Detecrtion voltage: 4.250±0.050V
	Release voltage: 4.150±0.050V
	Detection delay time: 1.0:±0.5S
Over discharge	Detection voltage: 2.75±0.08V
	Release voltage: 3.00±0.10V
	Detetion delay time: 100±50mS
Over discharge current	Over current: 1000mA
Over discharge current	Delay time: 10.0±5.0mS
Max. continuous discharge current	120mA
Discharge cut off voltage	2.75V
Operating temperature	Charge: 0 ~ 45ºC
Operating temperature	Discharge: -20 ~ 60ºC
Storge ambient temperature (charge 40-60%)	-20~60ºC less than 30 days
	-20~45ºC less than 90 days;
	20~20ºC less than 360 days
Battery dimensions(Dia*H)	3.8mm * 20.2mm*27.5mm
Weight	Approx. 3.2g
