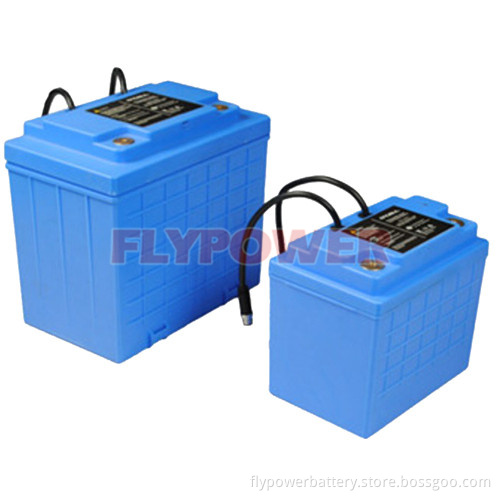

LiFePO4 Battery Module Pack (FlyPower model FLFP-12400E1, FLFP-121100E1, FLFP-12330P1, FLFP-12900P1 and FLP-18700E1)
-
USD880≥10000 Piece/Pieces
- Payment Type:
- T/T
- Incoterm:
- USD
- Min. Order:
- 10000 Piece/Pieces
- Min. Order:
- 10000 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 10000000pcs |
| Supply Ability: | 100000pcs/month |
| Payment Type: | T/T |
| Incoterm: | USD |
| Certificate: | RoHS |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
1. Model: LiFePO4 Battery Module pack (FlyPower model FLFP-12400E1, FLFP-121100E1, FLFP-12330P1, FLFP-12900P1 and FLP-18700E1).
2. UN, RoHS, CE approved Polymer Li-ion Battery pack.
3. LiFePO4 Battery pack OEM orders are welcomed.
4. Customizes shapes, capacity, and voltage are accepted.
5. Individual cells can be assembled in parallel or series into stacks as required by customers.
Feature
1. Safety: Currently the safest Li-ion battery, CE UL approved, none fire, none explosive
2. Environment friendly, no toxic material contained.
3. Powerful: P type battery can discharge in 15C-20C.
4. Low self discharge: ≤ 3%(monthly).
5. Long life cycle, more than 2000 cycle in 0.5C-1C discharge
6. No memory effect: Can be recharged any time, no reduction of capacity.
7. Broad operation temperature -20---60 centigrade.
8. Small in size and light in weight.: Compare with our battery, 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery.
Application
1. Electric Vehicle: Hybrid Electric Vehicle, Pure Electric Vehicle;
2. Ebike, Escooter, Electric Golf Cart, Electric Tools, Lawn Mower, Vacuum Cleaner. Electric boat, Elevator, Electric Wheelchair;
3. UPS: For computer, Emergency Application, Medical Movable UPS;
4. Solar Energy: Solat street lights, Solar LED Lights
5. Telecom System: Communication Base.
2. UN, RoHS, CE approved Polymer Li-ion Battery pack.
3. LiFePO4 Battery pack OEM orders are welcomed.
4. Customizes shapes, capacity, and voltage are accepted.
5. Individual cells can be assembled in parallel or series into stacks as required by customers.
Feature
1. Safety: Currently the safest Li-ion battery, CE UL approved, none fire, none explosive
2. Environment friendly, no toxic material contained.
3. Powerful: P type battery can discharge in 15C-20C.
4. Low self discharge: ≤ 3%(monthly).
5. Long life cycle, more than 2000 cycle in 0.5C-1C discharge
6. No memory effect: Can be recharged any time, no reduction of capacity.
7. Broad operation temperature -20---60 centigrade.
8. Small in size and light in weight.: Compare with our battery, 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery.
Application
1. Electric Vehicle: Hybrid Electric Vehicle, Pure Electric Vehicle;
2. Ebike, Escooter, Electric Golf Cart, Electric Tools, Lawn Mower, Vacuum Cleaner. Electric boat, Elevator, Electric Wheelchair;
3. UPS: For computer, Emergency Application, Medical Movable UPS;
4. Solar Energy: Solat street lights, Solar LED Lights
5. Telecom System: Communication Base.
| Model |
Nominal Voltage |
Capacity (Ah) |
Max. Voltgae |
Discharge Cut-off Voltage |
Pluse(30S) Discharge Current |
Charge Current | Max Discharge Current | Approx. Weight (KG) |
Dimensions (mm) |
| FLFP-12400E1 | 12.8V | 40 | 14.6V | 10.0V | 120A | 20A | 80A | 6.1 | 195*130*182 |
| FLFP-12330P1 | 12.8V | 33 | 14.6V | 10.0V | 200A | 33A | 120A | 6.1 | |
| FLFP-121100E1 | 12.8V | 110 | 14.6V | 10.0V | 300A | 55A | 150A | 15 | 260*158*246 |
| FLFP-12900P1 | 12.8V | 90 | 14.6V | 10.0V | 300A | 90A | 200A | 15 | |
| FLFP-18700E1 | 19.2V | 70 | 21.9V | 15.0V | 200A | 35A | 120A | 14.9 | |
|
Main Features: 1. Modules communicate via RS485 by BMU(Battery Management Unit). 2. Inter-module & intra-module balancing via BMU. 3. Enhanced SOC calculation via BMU. 4. Charge and discharge control via BMU. 5. Temperature monitor via BMU. 6. Isolation measurement via BMU. 7. FLFP-12330P1,FLFP-12900P1 and FLP-18700E1 are easy installation up to 60KWh system in series & parallel. 8. FLP-12400E1 and FLFP-121100E1 are easy installation up to 160KWh system in series & parallel. 9. Rugged mechanical and easy handling design. 10. Built in LED battery status indicator. 11. Can be charged with most lead-acid chargers. 12. Thousands of cycles under normal conditions. 13. Interchangeable design to replace lead acid battery 14. The system can be scaled up by connecting modules in series and parallel. 15. IP56 dust and water proof design for the housing. 16. LED indicator will show the state of battery module. 17. High accuracy SOC. |
|||||||||
