Horizontal Fiber Optic Splice Closure
- Incoterm:
- EXW
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Delivery Time:
- 5 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shehzhen |
|---|---|
| Productivity: | 8000 |
| Supply Ability: | 80000 |
| Incoterm: | EXW |

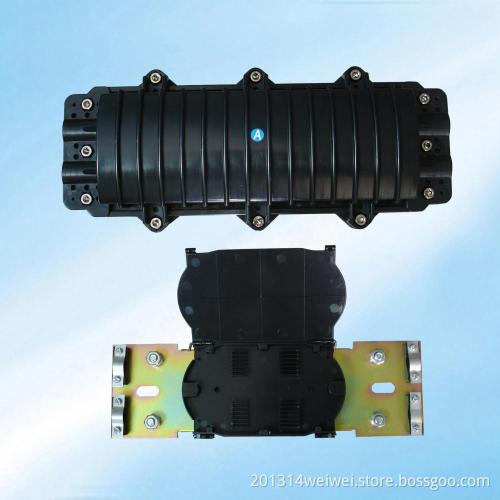

FOSC-H001
provide with 4 fiber cable in-out round ports and the cable diameter is from Ф7-Ф18.
It is widely applied to the splicing and distributing variable optical cables.
This product is made of the material ABS and with the mechanical sealing structure filled with the sealing material.
The external component and fastening piece are all made of the high-quality stainless steel. It can be opened after sealing.
Application:
Aerial-hanger, Wall-mounting, Direct buried
Specification:
|
Item |
FOSC-H001 |
|
Dimension (mm) |
440 X 200 X 110 |
|
Weight (Kg) |
2.6 |
|
Cable diameter(mm) |
7-18 |
|
Cable entry ports |
Two cables entry ports on each end |
|
Max. Capacity of fiber splice tray |
5 |
|
Max. Capacity |
60 |
|
Sealing structure |
Sticky cincture or silicon gum material |
|
Item |
FOSC-H001 |
|
Dimension |
440 X 200 X |
|
Weight (Kg) |
2.6 |
|
Cable diameter(mm) |
Ф7-Ф18 |
|
Cable entry ports |
2 in & |
|
Max. |
5 |
|
Max. |
120core |
|
Sealing structure |
Sticky |
|
Item |
FOSC-H001 |
|
Dimension |
440 X 200 X |
|
Weight (Kg) |
2.6 |
|
Cable diameter(mm) |
Ф7-Ф18 |
|
Cable entry ports |
2 in & |
|
Max. |
5 |
|
Max. |
120core |
|
Sealing structure |
Sticky |
|
Item |
FOSC-H001 |
|
Dimension |
440 X 200 X |
|
Weight (Kg) |
2.6 |
|
Cable diameter(mm) |
Ф7-Ф18 |
|
Cable entry ports |
2 in & |
|
Max. |
5 |
|
Max. |
120core |
|
Sealing structure |
Sticky |
