Face Recognition Device with Temperature Measurement

1. Product introduction

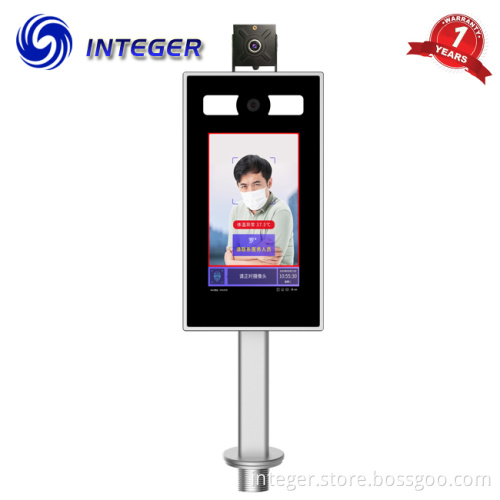

INFR-300-T7 is a high-performance dynamic temperature measurement face recognition terminal, which is divided into gate installation and wall-mounted installation. The terminal integrates offline face recognition, temperature detection, mask recognition, identity verification, on-site face collection, and blacklist. The functions of early warning, photo passing, and live detection are integrated. It adopts wide dynamic high-definition face recognition camera, which is fully adapted to harsh environments such as strong backlight and low light, with fast recognition speed, high accuracy, and large list library capacity. Can be used with application management systems such as real-name management system, face access control and attendance management system, visitor management system, etc., perfect for communities, campuses, scenic spots, hotels, shopping malls, corporate office buildings, public service places, construction sites Complex application scenarios for identification and access control. In terms of epidemic prevention and control, the potential risks brought by large-scale contact with the human body during temperature measurement are effectively reduced, the temperature measurement time of the human body is shortened, and the temperature measurement efficiency is improved. At the same time, centralized management provides real-time data support for screening and tracing suspect patients and mobile personnel, and provides strong security guarantees for management in the above scenarios.

2.Product Features

• Using offline face recognition technology, can identify multiple races such as yellow, white and black
• Supports face recognition, white list access, black list alert, etc.
• Support mask recognition
• Support external high-precision infrared body temperature detection module to achieve non-contact self-service measurement of human body temperature and reduce the risk of cross infection
• Support voice alarm for abnormal body temperature and block traffic
• Support the background PC system to centrally manage traffic records such as body temperature, visitors, whitelist, etc., and the data can be traced in real time
• Supports external ID card readers
• Support external IC / ID card reader to realize human-card comparison function
• Support live detection to prevent photo attacks
• Self-service face collection and batch import list, list management is more labor-saving and time-saving
• Customized voice for personalized voice broadcast
• Support picture and video advertisement playback
• Up to 100,000 pieces of data (cyclic writing)
• Support remote upgrade and U disk upgrade on the management side
• Open interface, support secondary development and docking

3.Specifications

• Product model		INFR-300-T7A	INFR-300-T7B
  Basic Parameter	Installation scenario	Gate installation	Wall mounting
  	temperature and humidity	-20℃ - 60℃,<90℃RH
  	Protection level	IP55
  	Application	Indoor (without sunshine interference)
  	size	136*27*405mm	136*27*249mm
  	Material	Aluminum alloy
  System Parameter	system	Linux
  	CPU	High-performance ARM architecture 32-bit 2-core
  	storage	RAM 512M，ROM 8GB
  	Display	7inch 170degree IPS LCD screen, resolution 1024 * 600
  	focal length	6mm
  	Pixel camera	200W，support Wide dynamic
  Infrared temperature measurement	Temperature measurement range	32℃—42℃
  	Temperature measurement accuracy	0.1℃
  	Temperature measurement error	±0.5℃
  	Temperature measurement distance	≤40CM
  Recognize parameter	Recognition distance	0.3-4m
  	Recognition time	≤300ms
  	Face library capacity	1:N，N<=50000
  	Accuracy	99.70%
  Interface	Power interface	1 x DC12V，DC005 2.1*5.5
  	USB	1 x USB2.0
  	Relay output	1 x Relay output， 2PIN
  	RJ45	1 x RJ45
  	Wiegand	1 x WG out
  	IO in	1 x I/O in
