Basic Info

Place of Origin:	China

Product Description

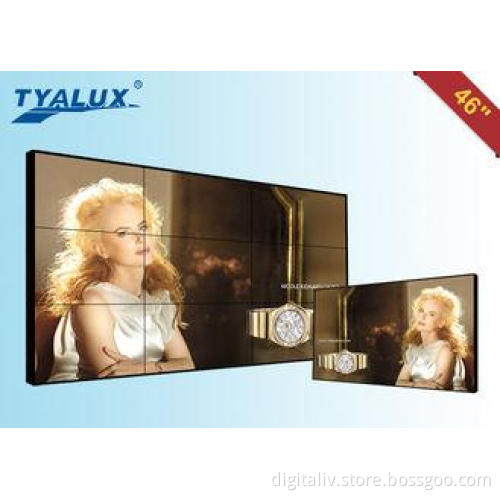

Samsung Panel Tiled Video Wall Display 2x2 with own software for Advertising

Description:

1: Integrated more video signal source line: HDMI, DVI, CVBS, USB, BNC

2: Super narrow 5.7mm splicing bezel, really provide you with full HD super narrow side viewing experience.

3: 16.7M or 8bit color, vivid colors

4: Design with 365*24 hours of working, working life 60,000hours

Specifications:

Specifications
Model No.		TYL-SDID4609-D
Screen size		Samsung 46 inch lcd screen
Aspect Ratio		16:9
Resolution		1920*1080
Bezel width		5.7mm
Brightness (nits)		500cd/m2
Contrast		4500:1
Visual angle (H/V)		178°
Response time		<=8ms
Life(hrs)		>60,000(hrs)
Input and output
BNC out		1
BNC in		2
VGA in		1
HDMI in		1
DVI in		1
YPBPR in		1
Power
Power supply		AC100V~240V
Maximum power consumption		150W
Standby power consumption		<=3W
Temperature
Working temperature		0°C~50°C
Working humidity		20%-80%
Appearance
Panel dimension( W x H x D) mm		1024(L)579 (H)141(D)mm
Acessory
Cable		Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	TYL-DP4609
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	50W
Weight	About 3.5KG

Applications:

Finacial ,Metro,shopping mall,supermarket,Public,Hotel,Beauty Shops,Subways,negotiable securities,gas stations,funds,golf courses,bus & train station,cinima and ktv,school and book shop,medical industry

Why choose Weiguan Views:

1: Quick response, inquiry will be replied within 8 hours.

2: Effective communication, queries will be answered by experienced staffs in fluent English.

3: Factory production. We control each procedure well and produce perfect product

4: Experienced R&D Department
