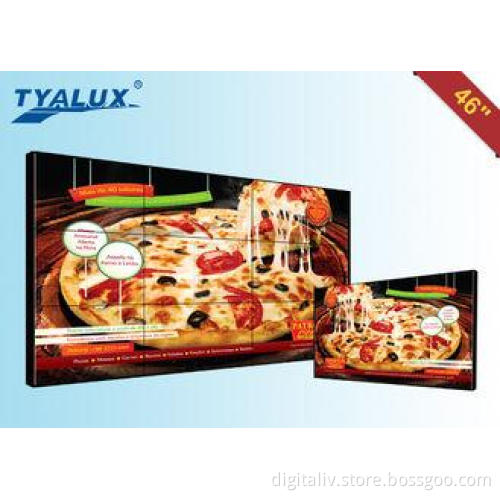

Narrow Bezel Multi Touch Video Wall Monitor for Cinima / KT

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

4K Supported Advertising Equipment Video Wall Displays with Samsung LCD Panel

Description:

1: Narrow bezel between screens, ultra-slim bezel between screen after combine is 5.7mm

2: Support video, audio, images and text playing, avi, mpg/mpeg, vob, dat, divx, mp3, bmp, jpeg, txt file;

3: RS232 Serial remote control type, support two RS232 signals out

4: Support both full & split screen display. Can choose different display code & pre-plan management by using control software.

Specifications:

Specifications
Model No.		TYL-SDID4609-D
Screen size		Samsung 46 inch lcd screen
Aspect Ratio		16:9
Resolution		1920*1080
Bezel width		5.7mm
Brightness (nits)		500cd/m2
Contrast		4500:1
Visual angle (H/V)		178°
Response time		<=8ms
Life(hrs)		>60,000(hrs)
Input and output
BNC out		1
BNC in		2
VGA in		1
HDMI in		1
DVI in		1
YPBPR in		1
Power
Power supply		AC100V~240V
Maximum power consumption		150W
Standby power consumption		<=3W
Temperature
Working temperature		0°C~50°C
Working humidity		20%-80%
Appearance
Panel dimension( W x H x D) mm		1024(L)579 (H)141(D)mm
Acessory
Cable		Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	TYL-DP4609
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	50W
Weight	About 3.5KG

Applications:

Mass Info Display systems,Retail Shopping Mall Advertising,entertaiment bar,cinima and ktv,school and book shop,medical industry,working building,meeting room,Airport, Finacial ,Metro,shopping mall,supermarket

Why choose Weiguan Views:

1: Effective communication, queries will be answered by experienced staffs in fluent English.

2: Qualified products. All of our product are qualified with CE/ROHS/FCC.

3: Experienced R&D department

4: We have our own outer shell&enclosure factory to accept OEM&ODM design order, quite experienced in customized item for client
