46 Video Wall Outdoor Digital Advertising Screens with 550n

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

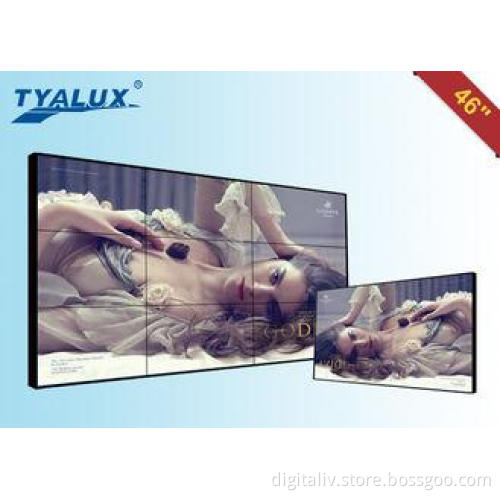

46 inch 4K Display Supported Narrow Bezel Video Wall with 550nits Brightness

Description:

1: Video wall controller fuction: full screen display; single screen display; combination display; image cruise;

superimposed images;Image drag function

2: Long life, stable operation, no burns, injuries, low maintenance costs

3: Full-screen high definition display, up to 1080P

4: Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone

Specifications:

Specifications
Model No.		TYL-DID4609-B
Screen size		Samsung 46 inch lcd screen
Aspect Ratio		16:9
Resolution		1920*1080
Bezel width		10mm
Brightness (nits)		550cd/m2
Contrast		9200:1
Visual angle (H/V)		178°
Response time		<=3.5ms
Life(hrs)		>60,000(hrs)
Input and output
BNC out		1
BNC in		2
VGA in		1
HDMI in		1
DVI in		1
YPBPR in		1
Power
Power supply		AC100V~240V
Maximum power consumption		120W
Standby power consumption		<=3W
Temperature
Working temperature		0°C~50°C
Working humidity		20%-80%
Appearance
Panel dimension( W x H x D) mm		1030(L)585.5(H)70(D)mm
Acessory
Cable		Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	TYL-DP4609
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	50W
Weight	About 3.5KG
