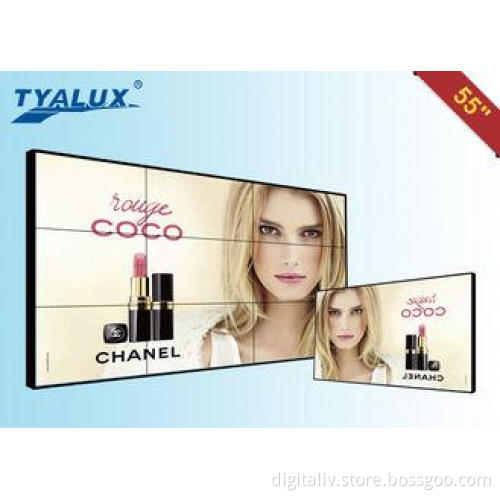

55" 1080P LED digital signage Video Wall for Makeup Advertising with 5.3mm Bezel

Description:

1: Support full screen,split screen and any conbination display mode.

2: Available to connect to PC,notebook,camera,video and other device.

3: Free software to combine screen easily,there is Chinese and English language.

4: Input and output interfaces ensure the product application with maximum compatibility and flexibility.

Specifications:

Specifications
Model No.		TYL-SDID5509-BL
Screen size		Samsung 55 inch lcd screen
Aspect Ratio		16:9
Resolution		1920*1080
Bezel width		5.3mm
Brightness (nits)		500cd/m2
Contrast		4500:1
Visual angle (H/V)		178°
Response time		<=10ms
Life(hrs)		>60,000(hrs)
Input and output
BNC out		1
BNC in		2
VGA in		1
HDMI in		1
DVI in		1
YPBPR in		1
Power
Power supply		AC100V~240V
Maximum power consumption		300W
Standby power consumption		<=3W
Temperature
Working temperature		0°C~50°C
Working humidity		20%-80%
Appearance
Panel dimension( W x H x D) mm		1215.3(L)686(H)135(D)mm
Acessory
Cable		Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	TYL-DP5509
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	50W
Weight	About 3.5KG

Applications:

supermarket,Public,Hotel,Restaurants,Fitness Halls,Massage Rooms,Bars,travel agencies,exclusive agencies,chain shops,cinima and ktv,school and book shop,medical industry,Security Monitoring Center, Surveillance,Show Center

Why choose Weiguan Views:

1: OEM/ODM customized model. We can customize according to specific requirements based on our product lines.

2: 12 years professional & leading manufacturer.

3: Effective communication, queries will be answered by experienced staffs in fluent English.

4: We promise 100% full new brand A+ LCD panel, generally speaking adopt LG, Samsung,it owns long use life and good visual effect.
