Zener Barrier Interface Explosion Proof Equipment for TX614

Zener Barrier Interface for TX6142(EX) & Intrinsically Safe Detectors

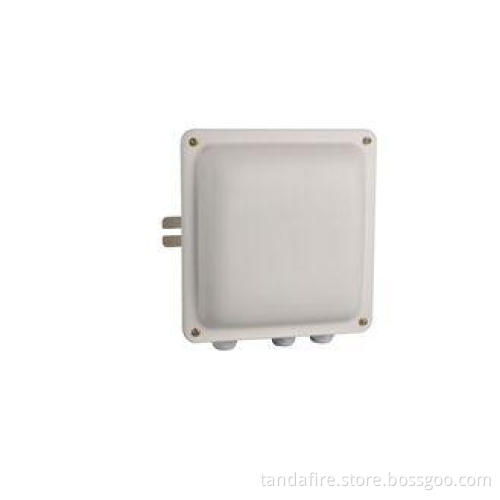

TX6410

Zener Barrier Interface

Main Features

• Electronic address coding interface
• Built-in zener barrier & zone monitoring module
• Self-checking for broken lines connected
• Connecting intrinsically safe detectors and MCP
• Compatible with T&A 3-series intelligent control panels

Technical Specifications

• Operating Voltage:

Loop Power :24VDC (16V~28V)

External PSU:24VDC(20V-28V)

• Operating Current:

Loop Power: Standby ≤1.5mA; Alarm ≤2.9mA

External PSU: Standby ≤11mA; Alarm ≤60mA

• Operating Environment:
  • Temperature : -10~+55℃;
  • Relative Humidity≤95% Non-condensation
• Device Type Connected: Intrinsically safe detectors and MCP
• Device Capacity Connected: 10 devices, mixed type
• Shell IP Level: IP66 (Input & output cables shall be sheathed)
• Installation Requirement: To be installed in safe zone only
• Dimension: 212.0*208.8*83.3mm
