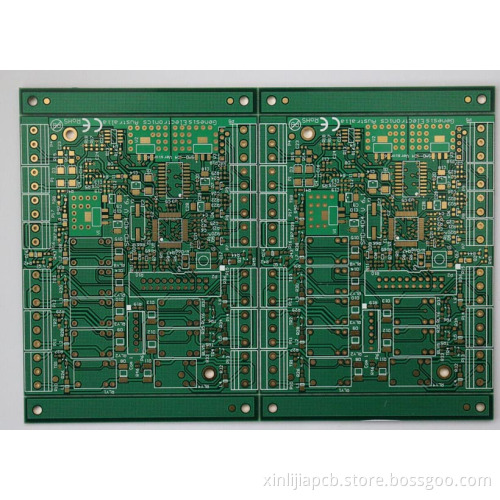

multilayer security circuit board immersion gold bare board

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB

Delivery Time:: 5 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	15000 square meters per month
Payment Type:	T/T
Incoterm:	FOB
Certificate:	IPC,RoHS,UL
Transportation:	Ocean,Air

Product Description

1.Part No.: L030I0401898A0
2.Layer: 4 Layers
3.Board Thickness: 1.60mm
4.Material: FR-4
5.Surface Treatment: Immersion Gold
6.Solder Mask: Green
7.Silkscreen: White
8.Side Hole
9.Application: Security Electronics

Capability
(1)Layer Count: 1-10 Layers
(2)Major Material: FR-4/ Aluminum
(3)Board Thickness: 16-134mil (0.4-3.4 mm)
(4)Surface Finishing: Immersion Gold/ OSP/ Lead-free HASL/ Plating Gold/ ENIG
(5)Solder Mask: Green/ Red/ Blue/ White/ Black/ Yellow
(6)Copper Thickness: 1/3 oz-2 oz
(7)Min Hole Size: 10.0mil (0.25 mm)
(8)Min Line Width and Spacing: 4.0 mil (0.10 mm)
(9)Max Size: 21.5"*24.5" (546mm*622mm)
(10)Min Size: 10.0mm*10.0mm

Delivery and Packing Details
(1)2-4 days for prototype
(2)7-8 days for production
(3)vacuum packing and carton box
(4)FOB port: Shenzhen China
