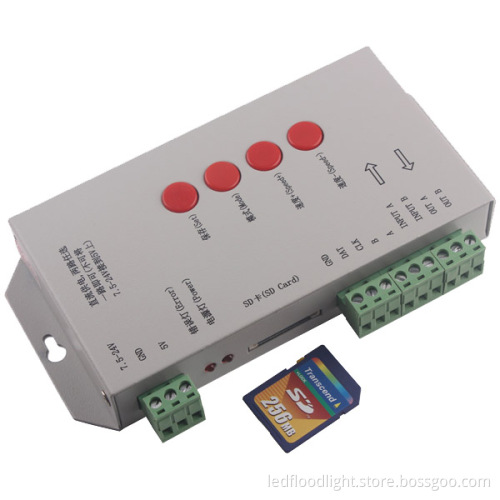

T1000S Digital LED Controller
  • T1000S Digital LED Controller
T1000S Digital LED Controller

T1000S Digital LED Controller

Payment Type:
T/T, Western Union
Incoterm:
FOB
Min. Order:
10 Piece/Pieces
Min. Order:
10 Piece/Pieces
Delivery Time:
5 Days
Transportation:
Ocean, Land, Air
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: CHINA
Productivity: 10000PCS/MONTH
Supply Ability: 10000PCS/MONTH
Payment Type: T/T,Western Union
Incoterm: FOB
Certificate: CE RoHs
Transportation: Ocean,Land,Air
Product Description
Product Description


T1000S Digital LED Controller:
1.can control 2048 pixel
2.DC5V/DC7.5V-24
3.led string, strip, pixel led
4. LEDEditor software

T1000S Digital LED Controller:
1. 256 Gray,Gamma correction processing software.
2. Support the rules and special-shaped handle.
3. Controller, a port output, may bring 1024/2048 light.
4. Off-line control, play back content stored in the SD card

5. T-1000C store a maximum of 16 documents


Support IC type

Module in LedEdit software

Pixel numbers

remark

LPD6803,D705,1101,6909, 6912

T-1000-6803

2048 pixel



LPD8806,LPD8809

T-1000-8806

2048 pixel


TM1803,TM1804,TM1809,TM1812

T-1000-TM

2048 pixel

TM1804 and TM1809

low speed and high speed

TM1903TM1904TM1909TM1912

T-1000-TM19

2048 pixel


UCS6909UCS6912UCS7009UCS5903

T-1000-UCS-32

2048 pixel


UCS1903UCS1909UCS1912

T-1000-UCS-256

2048 pixel

low speed and high speed

UCS3903

T-1000-UCS-1024

2048 pixel


DMX512

T-1000-DMX

170/512 pixel

Compatible DMX512

WS2801,WS2803

T-1000-WS

2048 pixel


WS2811

T-1000-WS2811

2048 pixel

low speed and high speed

DS189

T-1000-DS189

2048 pixel


TLS3001,TLS3002TLS3008

T-1000-TLS

* pixel


P9813

T-1000-P9813

2048 pixel


SM16715

T-1000-SM16715

2048 pixel

low speed and high speed

SM16716

T-1000-SM16716

2048 pixel


BS0901,BS0902

T-1000-0901

2048 pixel


BS0815

T-1000-0815

2048 pixel



Note:
Controller on the SD card can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply controller

Question 1: After power, the T-1000 ERROR indicator has been flashing without display output
Answer: The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems:
a .SD card is empty, with no effect file
b .The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and then re-create the effect file led
c .SD card did not format to FAT before copy effect files
d .Please check the supply power voltage, the controller can be individually powered to exclude power reasons
f .Changing the SD card and then test to exclude the possibility of a bad SD card

Question 2: The controller is powered on, the indicator is normal, but no effect change in lighting
Answer: The reasons for this are as follows:
A. Check if the lighting′s signal line and the controller connected correctly
B.If the TTL signal is received, the lamp and the controller must be common ground, that means connect the lighting′s and the controller′s ground together
C.check if the model chose during making display files on the SD card match the chips used in the lighting
