MPEG-1 , MPEG-2 ISDB Receiver Adopting MSD7805 With MXL60

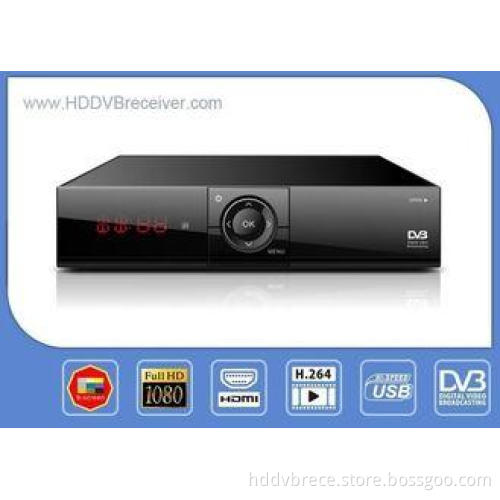

HD 1080P MPEG 4 Digital ISDB T Receiver Support USB PVR

• HD ISDBT set top box compliant with MPEG2 and MPEG4 H.264

• Compatible with HDTV channels and equipped with HDMI connector

• USB2.0 port with PVR function and external HDD support

• MultiMedia playback MKV/AVI/MP4/TS/FLV/MP3/JPEG

• EPG & Teletext & Subtitles

• Multi Language OSD menu

• Conditional Access(CA) Verimatrix ,Irdeto, Conax ect.

Technical Specifications

Core System

• Processor Frequency: 880DMIPS

• Memory: 128MB Flash 128MB RAM DDR-2/DDR-3

• OS: ECOS/LINUX

• Protocols: Standard Multi standard video decode

support: MPEG2 MP@ML, MPEG2 MP@HL, MPEG4 AVC/H.264 HP@L4

• STB upgrade: Through USB Disk or RS232

Video Decoding

• Resolution: Up to 1080p@30fps

• Supports HD MPEG2 (up to 1080p@30fps)

• Supports HD MPEG4 SP/ASP(up to 1080p@30fps)

• Supports file formats of RM and RMVB (Licensee Only)

• RealVideo 8/9/10, up to 720@30P(Licensee Only)

• DivX3/4/6 (Licensee Only)

• HD JPEG with unlimited resolution (40M-pixel tested)

Audio Decoding

• Audio Codec: MPEG-4 AAC5.1/AAC+Level2, MPEG-1/2 layer I, II and III, WMA, AC-3,Dolby Digital5.1, Dolby Digital+, DTS (Licensee Only)

Connectivity

• Broadcast tuners: ISDBT

• Video: HDMI v1.3a RCA out (CVBS, YPbPr, Audio L,R) or TV Scart

• Audio: Digital audio optical out(optional)

• USB: 1x USB 2.0 host device

Power

• Main power: 90-250V

• Power consumption: MAX 9W

• In StandBy mode: <1W

Proposed Accessories

• Remote Control Unit

• RCA Connect Cable

• 2 * 7# Batteries(optional)

• HDMI cable length 1.5m (optional)
