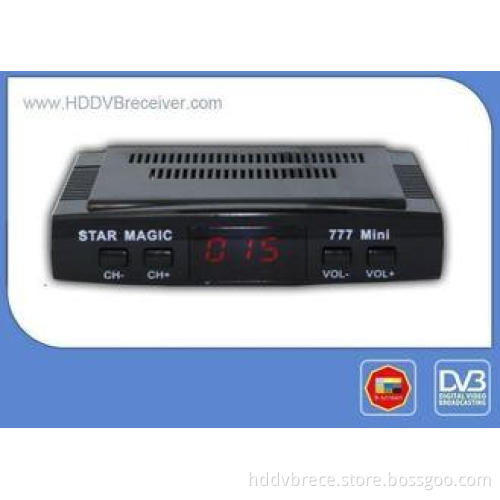

STAR MAGIC 777 DVB-S Digital Satellite Receiver PAL - NTSC

ALI3329 Star Magic Mini Digital Satellite Receiver Support BISS, TKGS, Dongle

Features:

1. Fully DVB-S/MPEG2 compliant
2. Supports DiSEqC 1.0/1.2
3. 0/22 Khz Tone
4. SCPC/MCPC Receivable from C/KU band satellite
5. 3 Operation Modes (Digital TV, Digital Radio, Favorite)
6. 950-2150 Mhz Input Frequency
7. Wide Symbol Rate 4-45 Mbps
8. MPEG-2 Main Profile at main level
9. Easy Graphic Menu Interface
10. 5 OSD Color Style
11. 16/256 colors on screen display (OSD) supported
12. PAL-NTSC auto-conversion
13. Up to 9 picture on screen
14. Software upgrade via RS-232 serial port
15. The Warranty of our dvb-s receiver is:12 monthes
16. Our dvb-s receiver has passed CE and ROHS

Specifications:

TUNER : AV2028
Input Frequency : 950 to 2150 Mhz
Input Level : -65 to -25
LNB Supply : 13V / 18 V / OFF, max 400 mA
Demodulation Type: QPSK
Symbol Rate : 4 ~ < 45 MS/s

AUDIO/VIDEO PROCESSING

Sudio Standard : ISO/IEC 13818-3
Audio Channel : Mute, Left, Right and Stereo
Audio Decoding : MPEG-1 & MPEG-2 layer I and II
Video Standard : ISO/IEC 13818-2, MPEG-2 MP@ML
Aspect Ratio : 4:3
Video Resolution : 720 x 576 (PAL), 720 x 480 (NTSC)
Video Format : 4:3
