Truck Mobile LED Display Digital Billboard

Truck Mobile LED Display Digital Billboard

USD1

5-4 Square Meter
USD100000

≥5 Square Meter

Payment Type:: T/T

Incoterm:: FOB

Min. Order:: 5 Square Meter

Min. Order:: 5 Square Meter

Delivery Time:: 10 Days

Port:: SHENZHEN, SHEKOU, HK

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	10000/month
Supply Ability:	10000/month
Payment Type:	T/T
Incoterm:	FOB
Certificate:	ISO UL CE FCE FCC ROHS EMC
Port:	SHENZHEN,SHEKOU,HK

Product Description

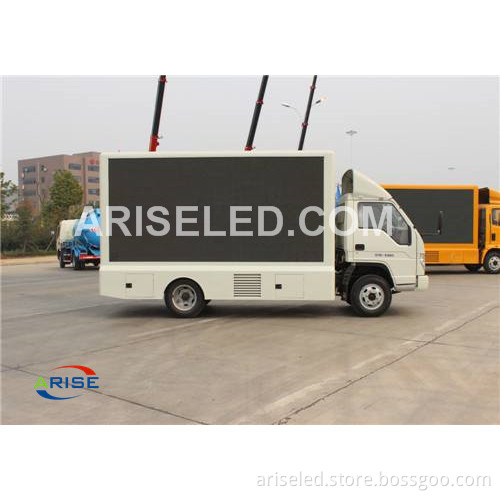

Truck Mounted LED Display full color smd/dip P10 P6.25 P8 P6 P5 Truck Mobile LED Display Digital Billboard

Arise Technology Co., Ltd. One-stop LED display manufacturere

info[at]ariseled[dot]com
[www][at]ariseled[dot]com

1.Super-light: 12.6 KG per panel,Ultra-thin: only 70mm thickness

2. It can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m

3. The appearance is very simple and elegant,Very easy to calculate the area of LED screen

4. With fast lock system, easy to install and dismantle,Can be stacked on floor or hung on truss

Pixel pitch	6.25mm
Pixel density	25,600 dots /sqm
Module size(W*H)	250 mm(width)*250 mm(height)
Module pixels(W*H)	40 dots *40 dots
Pixel configuration	1Red 1Green 1Blue
Drive mode	constant current driving 1/10 scan
LED lamp type	SMD3535
Cabinet size(WHD)	500mm*1000mm
Net weight	15Kg / cabinet
Cabinet resolution	80*160 dots
Color scale	65,536 degree
View angle(H/V)	140/120 degree
Brightness (White balance)	about 5000cd/sqm.
Power consumption(one cabinet)	Max:350W / cabinet , Average: 160W / cabinet
Inputting voltage	90-264 VAC, 47-63 Hz
Operating temperature	-30°C----+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
MTBF	5,000 hours
Whole Display Flatness	≤0.2mm Juncture
Frame frequency	25-60 Hz/s
Refresh rate	≥2,000Hz /s
Control distance	100m (without repeater),
LED control system	LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating system	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Protection grade	IP65
Maintenance way	Rear Access
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Packaging & Shipping

1.We can offer any kinds of the standard & customized package for you/ such as: Flight case/ wooden case & paper carton. We can also help you print your logo on your package case & also the product itself.

2.We Provide Drop shipping Service. In order to ensure you receive your order tax free upon import/ we declare lower value.

3. For Regular standard cabinet orders/ we can ship out in 1-2 working days after receiving your sample confirmation and payment; for big customized OEM Order: we need longer time/ around 15-25 working days after receiving your sample confirmation.

After-sale service

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge/ which including installation guidance/ software operation manual/ easy maintenance manual and control system software CD and so on.

Warranty:

1.We will provide a sum of spare parts to you together with the shipment(the details are as above)/ it included like leds/ power supply/ modules/ cables-and so on/ and it`s enough for the replacement within 2 years.

2.We will provide two years warranty for our products. That means two years of factory labor and components is provided for free/ however the customer should pay for the round shipping cost for broken parts.

3. For the technical support/ we will send the installation drawings/ user manual after the order is confirmed/ and we can offer the free training for your technician in our factory until he can manage it well.

4. For the installation/ if you need/ we can send an engineer to your country to help & instruct the installation/ but your side need to pay for the round tickets and accommodation.

5. For future service/ if you meet any problems/ our overseas engineer will service you online or by phone in 7x24 hours.

outdoor_led_signs_truck_mounted_mobile_led_screen_display_trailers

This is our LED display category from Arise Technology Co., Ltd. Thanks for your attention.

Category	Pixel Pitch(mm)
1. Outdoor Fix Installation LED Display Series	P4/ P5/ P6/ P6.67/ P8/ P10 (DIP)/ P10 (SMD)/ P10.4/ P12/ P16
2. Outdoor Strip/Louver LED Display Series	P15.625-15.625/ P15.625-31.25/ P31.25-31.25
3. Outdoor Rental LED display Series	P3.9/ P4.8/ P5/ P6/ P6.25/ P6.67/ P6.94/ P7.8/ P8/ P8.9/ P10
4. Indoor Fix Installation LED display Series	P1.2/P1.56/P1.6/ P1.667/ P1.8/ P1.875/ P1.9/ P2/ P2.5/ P3/
	P3.9/ P4/ P4.8/ P5/ P6/ P6.67/ P7.62/ P8/ P10
5. Indoor Rental LED Display Series	P2/ P2.5/ P3/ P3.125/ P3.75/ P3.91/ P4/ P4.81/ P5/ P6/
	P6.25/ P6.4/ P7.62/ P8/ P10
6. Transparent LED Display Series	P3.9-7.8/ P7.8-15.625/ P8/ P10
7. Floor LED Display Series	P6.25/ P6.25 interactive floor LED display /P8.9/ P10.4
8. Perimeter LED Display Series	P6/ P8/ P10/ P12/ P16
9. LED Advertising Player/Kiosk LED Display Series	P2.5/ P3/ P4/ P5/ P5.3/ P6
10. Taxi/Bus Mounted LED Display Series	P4/ P5/ P6/ P7.62
11. LED Ball Display Series	P3/ P4/ P5/ P6/ P7.62/ P8/ P10
12. Multiple creative LED displays and DJ booth LED displays for clubs and stages.
