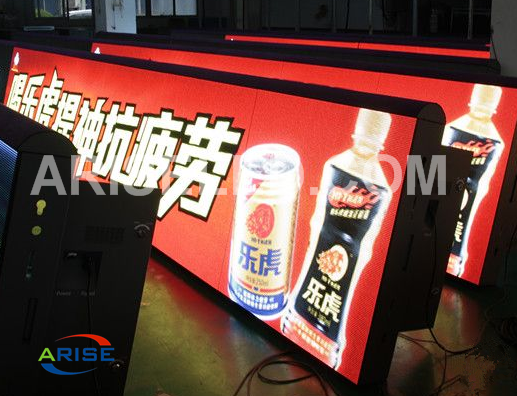

P8 waterproof led display, stadium led board 1024×1024mm P8mm ariseled.com

P8 waterproof led display, stadium led board 1024×1024mm P8mm ariseled.com

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB

Min. Order:: 5 Square Meter

Min. Order:: 5 Square Meter

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Shekou, HK

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	10000/month
Supply Ability:	10000/month
Payment Type:	T/T
Incoterm:	FOB
Certificate:	ISO CE UL
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Shekou,HK

Product Description

P8 waterproof led display, stadium led board 1024×1024mm P8mm ariseled.com

Arise Technology Co., Ltd. One-stop LED display manufacturere

Arise Technology Co., Ltd. One-stop LED display manufacturere
info[at]ariseled[dot]com
[www][at]ariseled[dot]com

1.stadium LED screen is ideal for places of with huge crowd;

2.Its high resolution picture and wide viewing angle ensure best quality pictures and videos to every corner of the stadium.;

3.Stable body protects the display from any damage, even high speed ball;

4.Wide Viewing Angle for Broader Reach 140°

5.Sports perimeter led display series( P5,P6,P8, P110, P12, P16, P20, P25 ).

Product Model	P8 Full Color Led Module
Module size	256mm*128mm
Pixel pitch	8mm
Pixel density	15625dots/m2
Pixel configuration	RGB 3 in 1
Module resolution	32dots(W)*16dots(H)
Module maximum power consumption	25W
Module Thickness	2.8CM
Module Weight	0.6kg
Driving method	Constant Current Driving
Scanning method	1/4 scan
Interface	HUB75B
Brightness	≥7500cd/m2
The specifications of cabinets
The specifications of cabinets
Cabinet size	768mm x 768mm
Module quantity	18pcs
Power supply	5V/40A 5V/60A
Cabinet resolution	96*96dots
Optimal viewing distance	8M ~ 80M
Optimal viewing angle	160°(W) 120°(H)
RH Working temperature	(Work :-20 °C~ +50 °C )
System operating humility	10%-95%
The specifications of power supplier
The specifications of power supplier
Operating Voltage	AC220V±10%
Average power consumption	300W/H
Maximum power consumption	≤600W/square meter
Electric current	≤20mA(single LED)
The specifications of control card
Control Panels	Pentium4 or above
Operating system	WIN98/2000/NT/XP
Control model	Synchronization with PC
The specifications of the main technical parameters
The specifications of the main technical parameters
Driving device	Constant Current Driving
Refresh rate	≥600HZ
Grey scale	RGB Each 256, can display 16.7M colors)
MTBF	≥9000hours
Power switch	Automatic Switch
Display Mode	800600/1024768/1280*900

Packaging & Shipping

1.We can offer any kinds of the standard & customized package for you/ such as: Flight case/ wooden case & paper carton. We can also help you print your logo on your package case & also the product itself.

2.We Provide Drop shipping Service. In order to ensure you receive your order tax free upon import/ we declare lower value.

3. For Regular standard cabinet orders/ we can ship out in 1-2 working days after receiving your sample confirmation and payment; for big customized OEM Order: we need longer time/ around 15-25 working days after receiving your sample confirmation.

After-sale service

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge/ which including installation guidance/ software operation manual/ easy maintenance manual and control system software CD and so on.

Warranty:

1.We will provide a sum of spare parts to you together with the shipment(the details are as above)/ it included like leds/ power supply/ modules/ cables-and so on/ and it`s enough for the replacement within 2 years.

2.We will provide two years warranty for our products. That means two years of factory labor and components is provided for free/ however the customer should pay for the round shipping cost for broken parts.

3. For the technical support/ we will send the installation drawings/ user manual after the order is confirmed/ and we can offer the free training for your technician in our factory until he can manage it well.

4. For the installation/ if you need/ we can send an engineer to your country to help & instruct the installation/ but your side need to pay for the round tickets and accommodation.

5. For future service/ if you meet any problems/ our overseas engineer will service you online or by phone in 7x24 hours.

This is our LED display category from Arise Technology Co., Ltd. Thanks for your attention.

Category	Pixel Pitch(mm)
1. Outdoor Fix Installation LED Display Series	P4/ P5/ P6/ P6.67/ P8/ P10 (DIP)/ P10 (SMD)/ P10.4/ P12/ P16
2. Outdoor Strip/Louver LED Display Series	P15.625-15.625/ P15.625-31.25/ P31.25-31.25
3. Outdoor Rental LED display Series	P3.9/ P4.8/ P5/ P6/ P6.25/ P6.67/ P6.94/ P7.8/ P8/ P8.9/ P10
4. Indoor Fix Installation LED display Series	P1.2/P1.56/P1.6/ P1.667/ P1.8/ P1.875/ P1.9/ P2/ P2.5/ P3/
	P3.9/ P4/ P4.8/ P5/ P6/ P6.67/ P7.62/ P8/ P10
5. Indoor Rental LED Display Series	P2/ P2.5/ P3/ P3.125/ P3.75/ P3.91/ P4/ P4.81/ P5/ P6/
	P6.25/ P6.4/ P7.62/ P8/ P10
6. Transparent LED Display Series	P3.9-7.8/ P7.8-15.625/ P8/ P10
7. Floor LED Display Series	P6.25/ P6.25 interactive floor LED display /P8.9/ P10.4
8. Perimeter LED Display Series	P6/ P8/ P10/ P12/ P16
9. LED Advertising Player/Kiosk LED Display Series	P2.5/ P3/ P4/ P5/ P5.3/ P6
10. Taxi/Bus Mounted LED Display Series	P4/ P5/ P6/ P7.62
11. LED Ball Display Series	P3/ P4/ P5/ P6/ P7.62/ P8/ P10
12. Multiple creative LED displays and DJ booth LED displays for clubs and stages.
