5630 12V led rigid pcb
- Payment Type:
- T/T, L/C, Western Union, Paypal
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 100000 |
| Payment Type: | T/T,L/C,Western Union,Paypal |
| Transportation: | Ocean,Land,Air |

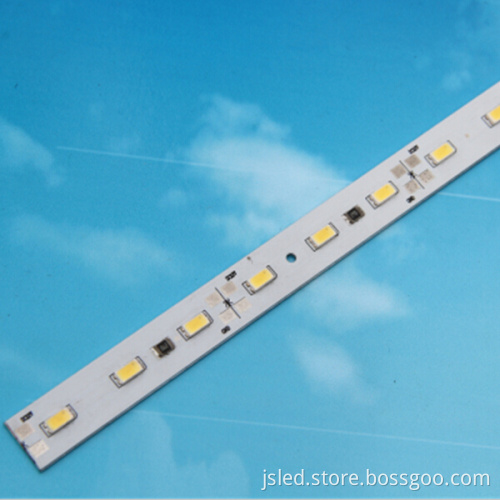

5630 DC12V or DC24V led rigid strip led lighting
Parameter
| Power: | 24 W | Input Frequency: | 50/60Hz |
| Working Voltage: | DC12V/24V | PCB Size | 1000*12*1.0mm |
| Material: | Aluminum PCB | Face | White |
| Lamp Luminous Flux: | 50-60lm/pc | Angle: | >120° |
| CRI: | ≥80 | Light Degradation: | 10000h<3‰ |
| Power Factor: | >0.8 | IP Ranting: | IP33,IP65 |
| Working temperture: | -20°C~40°C | Face Temperature: | ≤40°C |
| Lifetime: | 50,000 h | Warranty: | 3years |
| Color temperature: | WW:2800~3200,NW:4000~4500,CW:6000-6500K | ||
Product Introduce
LED Rigid strip is based on the LED lamp as the light source, the PCB circuit board as the carrier,The sircuit on the appropriate current limiting resistor and the design of the lighting production with the high brightness,energe-saving advantages,according to the required length shearing,According to the installation requiements,the plates can be required to cut(three lamp group), .
Product Future
1. The highlighted 5630 LED production, high brightness, less heat
2. Light color pure and soft, no glare. Both can be used as a decoration use, also can do it and lighting use
3. The LED cold light source, light color purity, exposure to the gold and silver jewelry watches, jewelry and surface can have very good display effect
4. Long service life, the life expectancy in 4 ~ 50000 hours, maintenance free, easy installation, with the installation environment change light Angle adjustment
5. Low calorific value. Can be used as the decoration lighting, fish tank water temperature increase caused by the high number of calories without established, affected the growth of the fish
Application area
1. The jewelry display ark, oil boat lighting and so on
2. Lighting signs, advertising signs, advertising decoration, the field of decoration high-quality goods, etc
3. Home decor, shoe, shoe cabinet, indoor and outdoor decoration, kitchen cabinet panels, smallpox, chest a far corner of the place such as decoration or outline of the outline, etc
4. Hotel decoration, wine cabinet, KTV, shopping malls, designs city-lighting, etc
Why choose us
1. Adopt double gold wire encapsulation, good heat dissipation, reduce light decline, color rendering index greater than 80;
2. Automatic welding machine, solder joints evenly;
3. High thermal conductivity aluminum plate, performance than ordinary aluminum plate by more than 40%, extending the service life of the lamp bead
4. Provide high quality OEM and after-sales service
5. The factory all products quality in the warranty period any quality problems (except for man-made destruction factors) are replaceable or warranty
