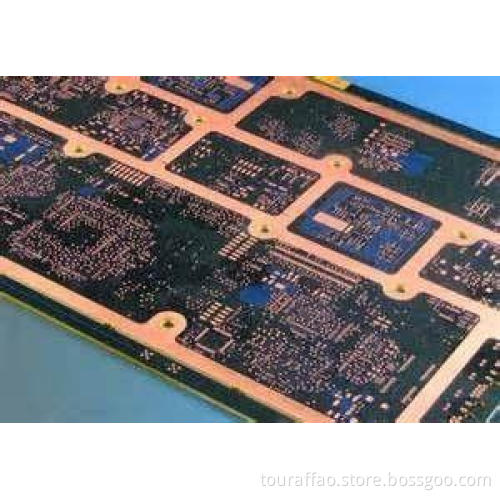

Immersion gold High TG Embedded components pcb smt , HDI PCB Board 4-Layer
Specifications
2.ROHS/UL/ISO9001
3.PCB layout design
4.Best after sales service
5.PCB SMT factory
WonDa, your single point of contact for all of your raw materials, parts, and pcb assembly, also offers:
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
Detailed Specification of PCB Manufacturing
|
1 |
Layer |
1-28 layer |
|
2 |
Material |
FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,Aluminum, Ceramic, Rogers,F4B,Teflon |
|
3 |
Board thickness |
0.2mm-6.0mm |
|
4 |
Max.finished board side |
550mm*1100mm(single-sided) 550mm*640mm(multilayer) |
|
5 |
Min.drilled hole size |
0.15mm |
|
6 |
Min.line width |
0.076mm(3mil) |
|
7 |
Min.line spaceing |
0.076mm(3mil) |
|
8 |
Surface finish/treatment |
HALS/HALS lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating |
|
9 |
Copper thickness |
0.5-4.0oz |
|
10 |
Solder mask color |
green/black/white/red/blue/yellow |
|
11 |
Inner packing |
Vacuum packing,Plastic bag |
|
12 |
Outer packing |
Standard carton packing |
|
13 |
Hole tolerance |
PTH:±0.076,NTPH:±0.05 |
|
14 |
Certificate |
UL,ISO9001,ISO14001,ROHS,CQC |
|
15 |
Profiling Punching |
Routing,V-CUT,Beveling |
|
16 |
Assembly Service |
Providing OEM service to all sorts of printed circuit board assembly |
Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pictures of pcb/ fpc/ pcba or pcba sample for us
3)The PCB specification: Copper thickness(18um or 35um?); Finished board thickness(0.8mm or 1.6mm?);
Surface treatment(lead-free HASL or immersion gold?)
4)Test method for PCB/PCBA
