High performance PH5.2 mm LED stage screen full color stage
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
PH5.2 mm LED stage scren high performance price ratio for large size
Specifications:
|
Unit module |
Pixel pitch |
5.2 mm |
|
Pixel density(dots/sqm) |
36864/sqm |
|
|
LED encapsulation |
SMD3528 |
|
|
Driving method |
1/12 |
|
|
Module size(mm) |
250*250 |
|
|
Resolution of module( dots) |
48*48 |
|
|
Major technical parameters |
Cabinet size |
500*500mm |
|
Brightness |
1500cd/ ㎡ |
|
|
Refresh rate |
>2000HZ |
|
|
Color temperature |
6500K |
|
|
View angle(H/V) |
160°/140° |
|
|
Grey scale |
16bit |
|
|
Brightness adjustment |
256 grade/ Manually/ Automatically |
|
|
Working/ storage temperature |
-20℃~50℃/ -30℃~60℃ |
|
|
Working/ storage humidity |
10%~90% RH |
|
|
Working voltage |
AC220/110V 50Hz |
|
|
Protect degree |
IP43 |
|
|
MTBF |
>5000h |
|
|
Life span |
100000h |
|
|
Input Signal |
AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP |
|
|
Operation system |
Windows 7/XP |
|
|
Control distance |
cat-5 data cable:<100m, optical fiber<15km |
Description:
1. suiable for large size and long view distance:since the pixel pitch is big, it can be applied for large stage size and long view distance.
2. Fast installation and disassembly: our die casting cabinet is designed with humanized locks and it is very convenient for installation and dis-assembly.
3. Seamless connection:For our die casting cabinet, we apply CNC technology. So connection is absolutely seamless.
4. Stable connection in power and signal: For rental cabinets, because of constant transportation and stage shock, stability in power and signal connection is very important. So we pay special attention to this point and make it stable.
5. Nice cabinet design: the cabinet design is very nice for visual image.
6. High refresh rate: Since stage rental LED screen will be applied for high-leveled occasions and there will be camera used. So the refresh rate of the LED screen must be high. Our screen’s refresh rate can reach above 2000 Hz and it is suitable for camera.
7. Low weight cabinet design: for each 500*500mm cabinet, each one is only 9KG. So it is very convenient for handle and transportation.
8. data/power redundancy function: Data and power redundancy function is key important for HD LED screen. It is unavoidable that there is some problem for data or power transmission. If when customers are using the LED screen and suddenly there is no data or power transmission, it will be very bad. To avoid such problem, we will apply good power and controllers with redundancy functions. Even if one controller or power is broken, the whole screen can still work normally.

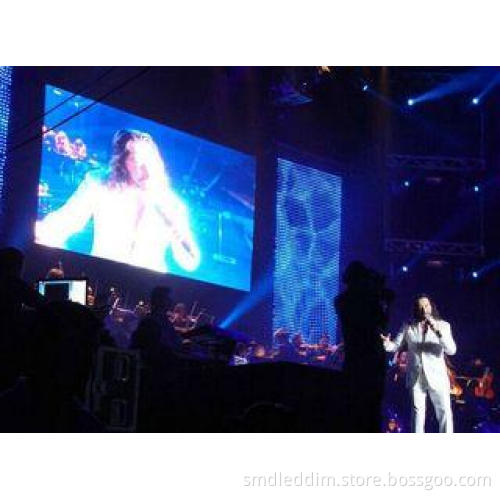

Applications:
TV station
Stage
Wedding ceremony
Birthday party
