Die Casting RGB small pitch P2.5 LED Indoor Screen HD SMD21
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

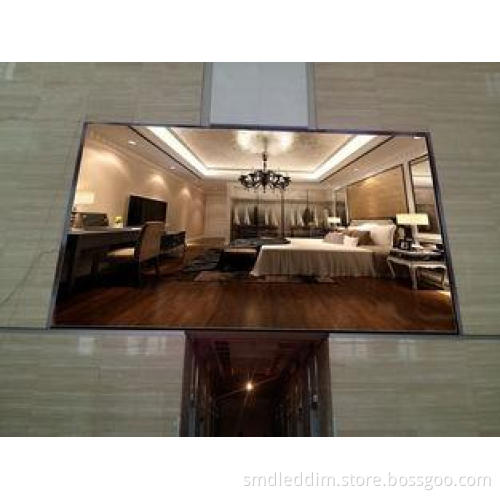

P2.5 small pitch indoor LED screen for hotel , very clear image
Specifications:
|
Unit module |
Pixel pitch |
2.5 mm |
|
Pixel density(dots/sqm) |
160000/sqm |
|
|
LED encapsulation |
SMD2121 |
|
|
Driving method |
1/16 |
|
|
Module size(mm) |
240*120 |
|
|
Resolution of module( dots) |
96*48 |
|
|
Major technical parameters |
Cabinet size |
480*480mm |
|
Brightness |
1300cd/ ㎡ |
|
|
Refresh rate |
>2000HZ |
|
|
Color temperature |
6500K |
|
|
View angle(H/V) |
160°/140° |
|
|
Grey scale |
16bit |
|
|
Brightness adjustment |
256 grade/ Manually/ Automatically |
|
|
Working/ storage temperature |
-20℃~50℃/ -30℃~60℃ |
|
|
Working/ storage humidity |
10%~90% RH |
|
|
Working voltage |
AC220/110V 50Hz |
|
|
Protect degree |
IP43 |
|
|
MTBF |
>5000h |
|
|
Life span |
100000h |
|
|
Input Signal |
AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP |
|
|
Operation system |
Windows 7/XP |
|
|
Control distance |
cat-5 data cable:<100m, optical fiber<15km |
Quick details:
Pitch: P2.5 indoor
module resolution: 96*96
module size; 240*240mm
cabinet size: 480*480mm
Description:
1. High contrast: We apply SMD2121 black face LED lamps to improve the contrast.
2. High refresh rate: BAKO indoor LED display is with high refresh rate and it is suitable for various occasions for camera.
3. Both front and rear service: If there is maintenance space at the back,for example, if it is wall mounting, we can offer front service for clients using magnets.
4. Slim cabinet design: For indoor LED display, we will use slim cabinet to save space.
5. Wide view angle: for horizontal, the view angle is 160°and for vertical it is 110°. This is totally enough for indoor view.
6. Good color uniformity: We are very strict in LED lamp and both wave and brightness difference is controlled. This can ensure that the whole screen’s color uniformity is good.
7. Real color image: There are 281 trillion kinds of color. So LED screen can show vivid and real image.
8. die-casting cabinet design: since die-casting cabinet has good precision, we just apply die-casting cabinet for seamless connection.
Application:
meeting room
military
hotels
stage
