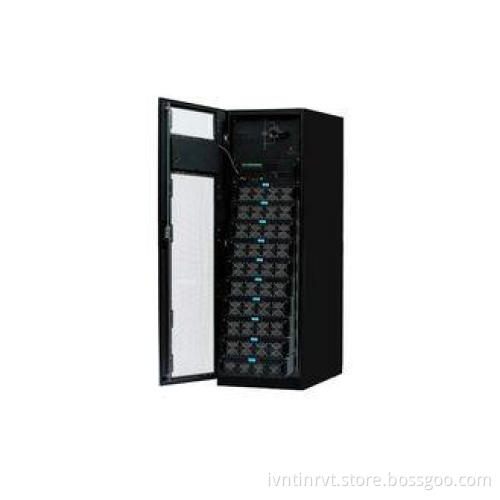

RM600/30X Modular UPS provides power

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Description

The RM600/30X Modular UPS provides power capacity of 600KVA in one single system. With the most advanced full DSP control technology, health management system and smart monitoring system, it has been proven to be the best choice for large data centers, as well as for sensitive electronics.

Specifications

MODEL		RM600/30X RM500/25X		RML400/20X PML300/15X
Capacity		25-600KVA		15-400KVA
Power Module Type		PM30X/PM25X		PML20X/PML15X
INPUT
Phase		3 Phases + Neutral + Ground
Voltage		380V/400V/415V(line to line)		200V/208V/220V(line to line)
Frequency		50/60Hz
Power Factor		>0.99
THDi		THDi<3% @ 100% linear load
Voltage Range		304~478Vac (Line-Line),full load 228V~304Vac (Line-Line),load decrease linearly according to the min phase voltage			166~261Vac (Line-Line),full load 125V~166Vac (Line-Line),load decrease linearly according to the min phase voltage
Frequency Range		40Hz~70Hz
OUTPUT
Voltage		380V/400V/415V		200V/208V/220V
Voltage Regulation		1.5%
THDu		THD<1%(linear load ),THD<6%(None linear load)
Power Factor		0.9		0.8
Crest Ratio		3:1
Overload Capability		110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms
BATTERY
Voltage		±240VDC		±120VDC
Charge Power		20%*System Power
Charge Power Precision		±1%
SYSTEM
System Efficiency		Normal mode:95% ;ECO mode:99% ; Battery mode:95%		Normal mode:93% ;ECO mode:98% ; Battery mode:93%
Display		10.4” LCD+LED, Color touch Screen +Keyboard
IP Class		IP20
Interface		Standard :RS232,RS485,Dry contacts, USB; Optional: SNMP ,Expansion dry contact card
Operation/Storage Temperature		0~40℃/-40~70℃
Relative Humidity		0~95%(non-condensing)
Noise		72dB @ 100% load, 68dB @ 45% load(1 meter away)
PHYSICAL
Weight	Cabinet	660Kg	660Kg
	Power Module	PM30X: 34Kg; PM25X:32Kg	PML20X:34Kg; PML15X: 32Kg
Dimension (WDH)	Cabinet	200010502000(mm)	200010502000(mm)
	Power Module	PM30X/ PM25X:460790134(mm)	PML20X/PML15X:460790134(mm)

Features

Modular design with N+X redundancy ,online hot-swappable
High power density of 600KVA in one single cabinet,l 30KVA power module with only 3U height
Green and energy saving: AC/ACl efficiency>95%,input power factor>0.99 while input THDi<3%
Full DSP control of highl stability, reliability and safety
Integrated IGBT module with improved performancel and reduced size
Self-Aging model for full load test with less than 10% of the total power capacity needed
Smart Sleeping mode forl energy saving and prolong the life time of the system
Optimized battery management, intelligently controll the whole process of the charging and discharging effectively

improve the life time of the battery
Battery cold start, UPS canl be powered on from the battery without utility
Automatically record the information when faultsl happen, easy for trouble shooting
Monitor runtime of critical components, such asl fans and capacitors, settable alarm for service period
Independent LCD display for each power module withl self-starting function
Programmablel dry contacts, the function of each port can be defined by users
Friendly human machine interface with colorfull touch screen of 10.4 inches
