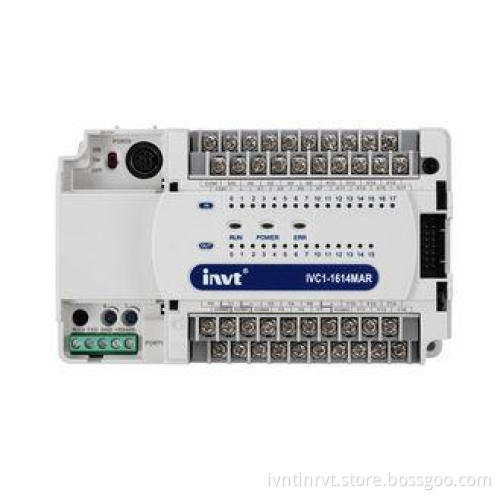

IVC1 series Mini Programmable Logic Controller Max I/O 128

Item

Features

I/O configuration

Max. I/O point number

128

Extension module number

7 (the sum of I/O extension module and special function module ≤7)

Program Memory

User program capacity

12k words

Data block size

4000 D elements

Instruction Speed

Basic instruction

0.3μs/ instruction

Application instruction

Several μs ~ Several hundred μs/instruction

Element

I/O relay

128 I / 128 O (Input X0 ~ X177, output Y0 ~ Y177 )

Auxiliary relay

2048 points (M0 ~ M2047 )

Local auxiliary relay

64 points (LM0 ~ LM63 )

Special auxiliary relay

256 points (SM0 ~ SM255 )

Status relay

1024 points (S0 ~ S1023 )

Timer

256 points (T0 ~ T255 )

T0 ~ T209: 100ms;
T210 ~ T251: 10ms;
T252 ~ T255: 1ms

Counter

256 points (C0 ~ C255 )

16 bit common up counter: (C0 ~ C199 )
32 bit common down counter: (C200 ~ C235 )
32 bit high-speed counter: (C236 ~ C255 )

Data register

8000 points (D0 ~ D7999 )

Local data register

64 points (V0 ~ V63 )

Indexed addressing register

16 points (Z0 ~ Z15 )

Special data register

256 points (SD0 ~ SD255 )

Interrupt Source

External interrupt input

16 (the interrupt is triggered by the rising & falling edges of ports X0~X7, which can be set by users)

High-speed counter
interrupt

6

Inner timming interrupt

3

Communication interrupt

8

High-speed output complete interrupt

2

Power failure interrupt

1

Communication

Communication port

2 asynchronous serial communication ports PORT0: RS232 PORT1: RS232 or RS485

Communication protocol

Programming protocol, MODBUS protocol, free-port protocol, N:N (INVT protocol), capable of networking as 1: N or N: N

Special Function

High speed counter

X0,X1

Single input: 50kHz

X2~X5

Single input: 10kHz

X0 ~ X5 simultaneously input: total frequency 60kHz

Pulse output

Y0,Y1

100kHz two independent outputs (applicable to only transistor output)

Input filtering

X0 ~ X7 provide digital filtering, other ports use hardware filtering

Variable analog
potentiometer^[1]

2

Subprogram call

At most 64 subprograms and 6-level subprogram nesting can be used. Support local variables and variable-alias, and every subprogram provides 16 parameters to be called at most

User program protection

Uploading password

Three password authorities. Combination of characters and numbers, each not longer than 8 characters. Case sensitive

Downloading password

Monitor password

Other protection measures

Protection functions include formating ban, uploading ban,and subprogram password protection

Programming mode^[2]

ControlStar programming tool^[3]

To be installed in computers

Real time clock

Built in, capable of running 100h after a power failure (precondition: the basic module has worked for at least 2 minutes before the power failure)

[1]: The analog potentiometer provides users an method for setting inner element, which is within 0~255 and read by user program. To adjust the setting, you can use a small Philips screwdriver to rotate the potentiometer clockwise to raise the setting. The maximum rotation angle is 270°.

[2]: Provide register forced function, convenient for debugging and analyzing the user program, improving debugging efficiency. Supportive of forcing 128 bit-registers and 16 word-registers at the same time.

[3]: supportive of online user program modification
