SVC AC 380V Crane Inverter Low Voltage System Design CHV190

SVC AC 380V Crane Inverter Low Voltage System Design CHV190 Series TUV

Description

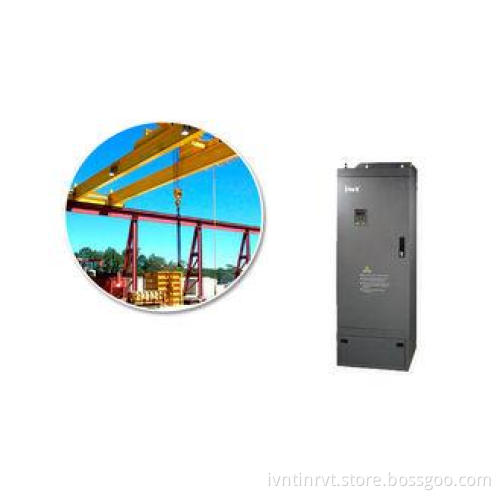

CHV190 series special inverter is designed for hoisting and lifting industry. It adopts the advanced control theory; it has the excellent torque control performance. The abundant of capabilities can ensure safety, reliable and high efficiency. According to different requirement, there are manifold ripe solutions for users. It is widely used in lifting and hoisting machinery, such as hoisting, lifting, cart, swinging gear.

Specifications

Selection Guide

Features:

1. The time sequence of brake logic control and monitor function. Speed up when load is light.

2. Power balance and speed synchronous at mater-slave mode. Can offer the crane operation mode. 3. Professional communication function. . Slack rope detection. Upper monitoring software. 4. Power supply of control circuit and power supply of main circuit are controlled respectively.

5. 4 groups of motor parameters can be set and switched. 6. Monitor the dangerous speed, stop rapidly and over-speed protection. Pre-compensation of start-up torque and torque verification.

7. Current vector control: the output torque can be up to 200% at zero speed. 8. Plentiful peripheral interface and protection function.

9. Low Volatage Inverter.
