Basic Info

Place of Origin:	China

Product Description

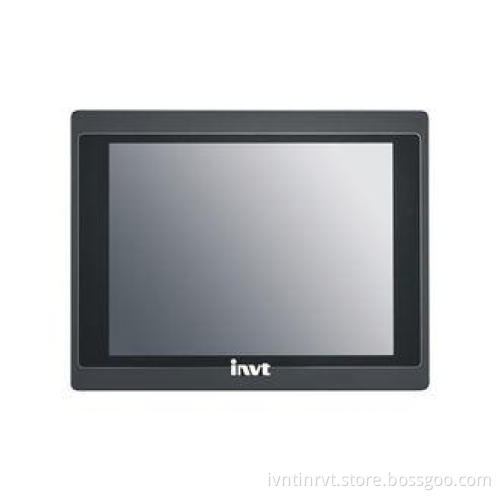

TFT Display Human Machine Interaction 64M Memory VT / VK series

Description

VT/VK series Human Machine Interaction features rich display function, huge internal memory, advanced configuration function, and easy to use human-machine interface; therefore, it facilitates human-machine interaction in industrial automation field.

Specifications

Specifications and Technical Datas

VT Series-15″

	Content	VT150-H1ET-N
Display	Dimension	15″
	Resolution	800×600
	Display type	TFT
	Backlight service life	20000 hours
	Brightness	400cd/m2
	Touch screen	5-wire resistive touch screen
	Backlight module	LED
Hardware resources	Processor	32 bits RISC SOC integrated graphics accelerator
	Processing speed	200MHz
	Memory	64M
	Battery backup memory	128KB
	Flash program memory	8M+128MB NAND Flash
Interface	Ethernet port	1×10/100Mb
	USB interface	1 main board, 1 non-main-board
	Print interface	N
	Serial interface	COM1:RS232/422/485 COM2:RS232/485 COM3:RS232
	Micro SD card slot	Y
Power supply	Input power	24VDC±10%
Power supply	Power consumption	25W
Environment	Operating temperature	-10℃~50℃
	Relative humidity	10%~90%RH(no condensation)
	Protection class	NEMA 4/IP65(front panel)
	Safety certification	CE/FCC
Structure	Outlet dimension (W×H, mm)	399.1×297.6
	Cut out dimension (W×H, mm)	384.5×283.0
	Depth of front panel(mm)	6

Features

VT/VK series HMI is easy for human-machine interface in industry automation with the advantages of various displaying modes, high capacity, flexible configuration and simple operation.

1) Various picture controls

2) Multiple language displaying

3) Support multiple communication connections and sub-connection

4) Support up to 16 data formula

5) A variety of the operations, and easy access to data application
