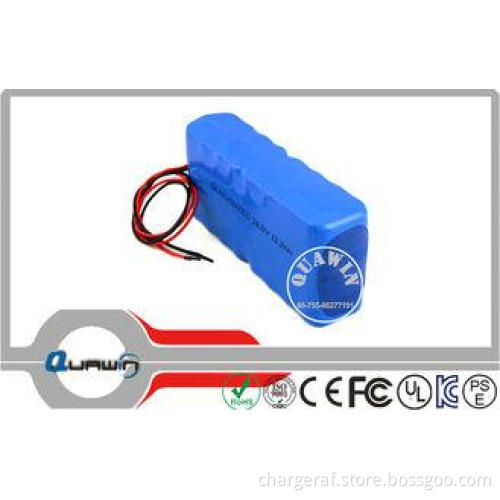

Environmental Lithium Battery Packs , 14.8V 13200mah lifepo4 battery cells
Quick Detail
Brand Name:QUAWIN/OEM
Model Number:LP0148-132K-L
Type:Li-Ion,Li-ion battery,Lithium battery
Place of Origin:Guangdong China (Mainland)
Nominal Voltage:14.8V
Nominal Capacity:13200mAh
Cell:Samsung/sanyo/Sony/LG/Panasonic 2200mAh Battery
Certificate:CE,ROHS,UL,UN38.3 REACH
Pack:Blue or black PVC Shrink tube
Size:58(T) x 160(W) x 70(H)mm
Weight:1150g
Composed Type:4S6P
Delivery time:5-7days
Cycle life:500 times
Warranty:12 months
Packing:Antistatic bag /white box and standard export carton/customized
Packaging & Delivery
. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/Cartoon box with less than 10KGS
. Delivery Detail:sample within 3 work days,7~15 days for bulk order
Specifications
|
Product Name: |
14.8V 13200mAh Li-ion battery pack |
|
Product number: |
LP0148-132K-L |
|
Model NO.: |
18650R-4S6P (13200mah) |
|
Voltage: |
14.8V |
|
Capacity: |
13200mAh |
|
Maximal charging current: |
2A(Adjust) |
|
constant discharge current: |
1~5A(small current discharge,Adjust) |
|
peak discharge current: |
≥15A(Adjust) |
|
Life of battery: |
About 500 times cycle |
|
Charging temperature(℃): |
0℃~45℃;32oF~113oF |
|
Discharging temperature(℃): |
-20℃~60℃;-4oF~149oF |
|
Storage temperature(℃): |
-20℃~45℃;-4oF~113oF |
|
Dimensions(mm): |
58(T) x 160(W) x 70(H)mm |
|
Weight(Kg) |
About 1150g |
|
Over charger protection voltage(V): |
16.8V±0.05V |
|
Over discharge protection voltage(V): |
12.0V±0.10V |
|
Protection Temperature(℃): |
70℃±5℃ |
|
Warranty: |
12 month (free) |
|
Requirements: |
With label, plug,connector, OEM accept. |
|
Specification: |
High capacity, high discharge long work,life long,save and environmental protection. |
|
Application:Wifi device,communication device,medical equipment,instrument,led lamps, transportation sign,portable family appliance, electronical tools and toys etc. |
|
|
|
|
|
The Suitable Charger Model NO.: |
QW148-020-L |
|
charger input: |
100V~240VAC 50-60Hz |
|
charging mode: |
constant voltage constant current (CC/CV) |
|
charging voltage: |
16.8V±0.2V |
|
charging current: |
2.0A±0.1A |
|
charging time: |
7-8 hrs(standard) |
|
charger working instruction: |
Be in charging the red light,be full of charging the green light; |
Product Advantages
1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Short circuit testing passed
7). Overcharge testing passed
8). Over discharge testing passed
9). 150C thermal shock test passed
10). 1.2m drop testing passed
Spotlight
1). Provide both single cells and battery packs
2). 100% inspection before delivery
3). Inspects inner resistance,discharge platform and self-discharge
4). manufacturer of 18650 lithium ion battery,lithium polymer battery etc.
5). tablished quality control systems under ISO9001
6). stomized packs, tags,labels,plugs,connectors,over current protection,
temperature cont8.l protection are available
Shipping terms
1). Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2). Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3). We are not responsible for any accidents, delays or other issues that are caused by the shipping.
Safety Precaution
1). Do not throw battery into water or make it wet;
2). Keep the battery away from heat source(like fire or heater);
3). Do not throw the battery into fire or heat the battery;
4). Forbid to hammer to trample the battery;
5). Forbid disassembling the battery in anyway
