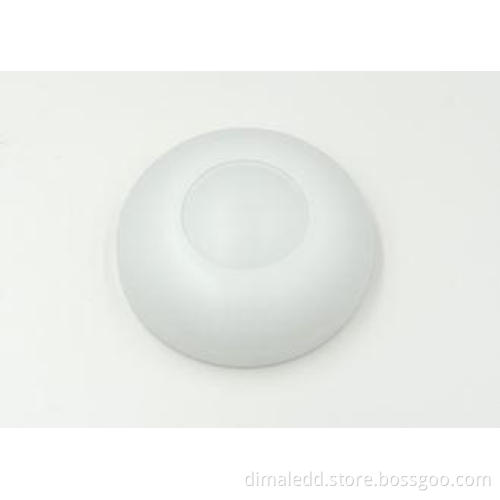

12v DC Input ON-OFF Microwave Motion Sensor MC009D With CE and R&TTE approval
Description
1. 12Vdc input, output high level signal or low level signal, can be set per jumper.
2. High quality microwave motion sensor, can detect slight movement.
3. High sensitivity and normal sensitivity mode selectable.
4. 5.8GHz high frequency microwave(C-Band license-free operation)
5. MC009D is a DC input microwave motion sensor, will output 500ms pulse signal when motion is detected, normally used in intelligent hotel management system.
Function:
ON-OFF function
Specifications:
|
Input |
12Vdc +/- 2Vdc |
|
Output |
500ms high level signal or 500ms low high level signal, selected by jumper. |
|
HF system |
5.8GHz+/-75Hz, ISM wave band |
|
Transmitting power |
<0.5mW |
|
Stand-by power |
≤1W |
|
Detection area (R) |
8m Max. |
|
Mounting height |
8m Max. |
|
Detection sensitivity |
25% /50%/75%/100%, set via DIP switch |
|
Detection sensitivity setting |
High/ Normal, set via jumper (Note) |
|
Daylight threshold |
Disable/50lux/5lux, set via DIP switch |
|
Detection range
|
150°(wall installation) 360°(ceiling installation) |
|
Operating temperature |
-25℃~70℃ |
|
IP rating |
IP20 |
|
Life time |
50,000h |
|
Certification |
CE |
Applications:
Hotel , etc
