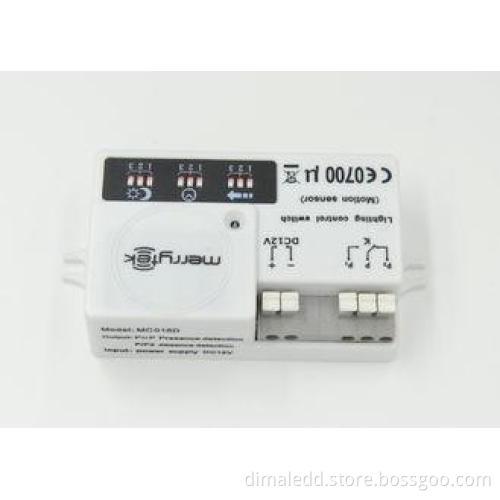

12v DC Input Dry Contact Microwave Motion Sensor MC016D Special For Solar Energy Garden Lamp Or Industrial Application
Description
- MC016D is a Dry contact detector .
- Automatic switching based on motion and light level.
- Low voltage input 12VDC.
- Detection area, time delay and daylight threshold can be precisely set via DIP switch.
- MCO16D is an innovative and active motion detector with system5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.
- The sensor basically has the same function as MC011S. But it supplies dry contacts in normally closed mode and normally open mode. Dry contact means open or close contact without any current or voltage. It is prefect for use in the solar energy garden lamp or industrial control application where requires isolation between motion signal and power supply.
- Users can select the right mode according to different application.
Function:
ON-off function
Specifications:
|
Operating voltage |
12Vdc(can be customized) |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-25℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
10%25%/50%/75%/100% |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Applications:
Special for use in the solar energy garden lamp or industrial control application where requires isolation between motion signal and power supply.
