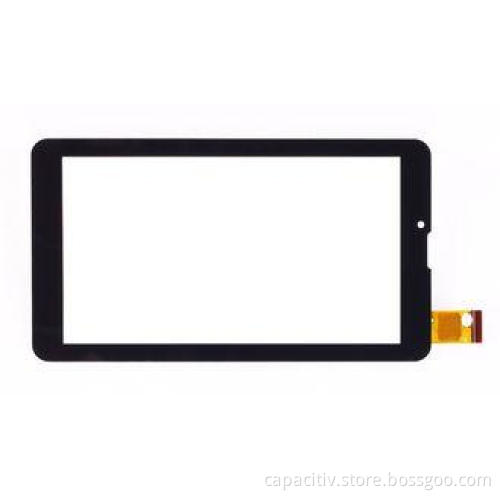

Customized Capacitive Touch Panel FPC COF Connection ISO14001 / CE / FCC
Quick Detail:
- Cover Glass +OCA + ITO Glass + FPC
- Surface Hardness: 6H
- Sensor Process: Printing
- IC: GT911 (COF)
- Total Thickness: 1.55±0.1 mm
- Transmittance: ≥87%
Specification:
|
Model No. |
SCT-G70-003915A |
|
Size |
7 inch |
|
View Area |
153.4 x 90.07 mm |
|
Outline Dimension |
185 x 124 mm |
|
Structure |
Cover Glass + Sensor Glass |
|
Cover Glass |
0.7 mm |
|
Sensor Glass |
0.55 mm |
|
FPC |
Pitch=1.0 mm |
|
Surface Hardness |
6H |
|
Connection |
COF |
|
IC Model |
GT911 |
|
Transmittance |
≥87% |
|
Operating temperature |
-20℃~70℃, ≤90%RH |
|
Storage temperature |
-30℃~80℃, ≤90%RH |
Assembly Precautions:
- Do not exert extra force to touch panel.
- Since touch panel is transparent and clear,make sure to wear fingerstall or glove before touching.Be careful of your hands and other parts from injury at handling by glass corners.
- When handling,make sure to hold the touch panel borders not center parts to avoid dirt to touch panel. Do not lift touch panel by tail to avoid tail loosen.
- When installing and assembling, do not lift tail with heavy force to avoid tail peeling off touch panel.
- Do not stick or mount other parts on the tail, such as additional film or metal plate. As it will exert extra force to tail tip and cause tail loosen.
- Please don't pull FPC with force from side to side, because the FPC tension will make FPC burst.
- If there is air groove on touch panel, when design product structure, make sure no liquid and powder near the air groove.
- In order to avoid heavy stress to touch panel surface, make sure to keep 0.2mm-0.5mm assembling gap between touch panel and case.
