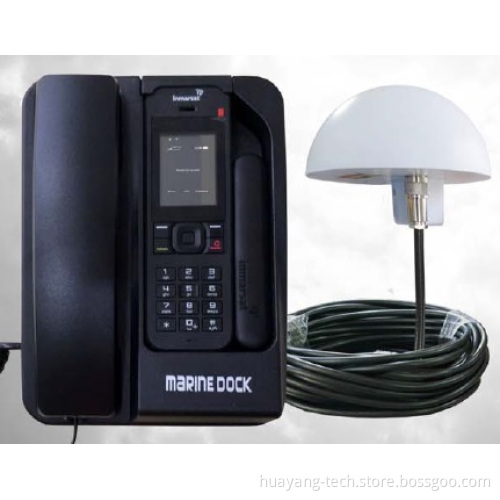

Marine Isatphone dock For Isatphone 2

Marine Isatphone dock For Isatphone 2
Model: ISATDOCK2

BRIEF

The ISATDOCK2 enables the Isatphone 2 to be always on and ready for service (Call and Receiver). The Isatphone 2 handset features include phone charging management, USB data port, inbuilt ringer and allows antenna and power to be permanently connected to the dock ready for use.

APPLICATION

Keep satellite signal on status whenever and wherever on the global .

Avoid miss incoming call, and call out satellite phone in your drive room or office.

In remote areas also let Isatphone 2 have good receiving ability.

FEATURES

Quickly searching satellite and GPS Position

Charging control switch and LED indicator for battery charging status

High signal receive ability by marine active antenna

Inbuilt Hands-free speaker phone

USB Data access

High quality ABS plastic

Wall or desk mounting options

Integrated Antenna design

SPECIFICATION:

POWER

9~36V DC input lead

AC/DC adaptor (Optional)

ANTENNA WORK FREQUENCY

Inmarsat Receiver: 1525.0 to 1559.0 MHZ, 1575.42+/- 10.25MHZ (GPS L1 )

Inmarsat Transmit: 1626.5 to 1660.5 MHZ

Antenna Description: Type marinetime

POWER CONSUMPTION

Charging: 500mA, 6W

Sleep mode: 5mA, 60mW

PHYSICAL

Dimensions: 219 x 166 x 85 mm

Weight – dock: 0.687g

ENVIRONMENT

Operating Range: -30 C to +80 C

Storage: -35 C to +85 C

Battery Charging Temp.: 0 C to +45 C

Operating Humidity Range: 95% at 40 C

Storage Humidity Range: 95% at 45 C

IN THE BOX

1. ISATDOCK2 main unit x 1

2. Privacy handset x 1

3. DC Power Cable / Lead x 1

4. Active Satellite Antenna x 1

5. Satellite Antenna Mounting bracket x 2

6. 5M/10M Antenna Cable x 1

7. User manual x 1
